Description

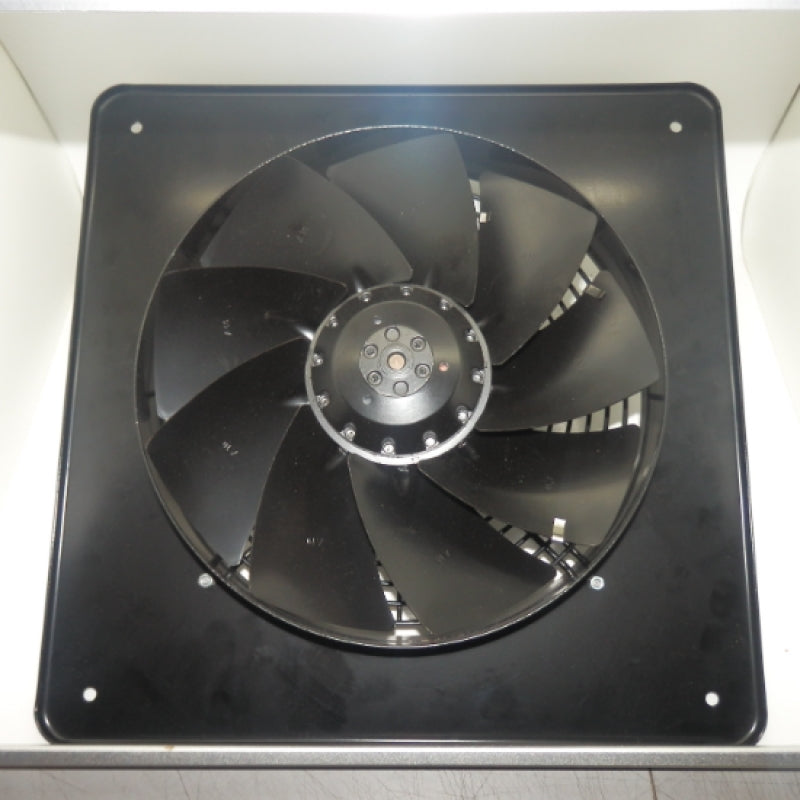

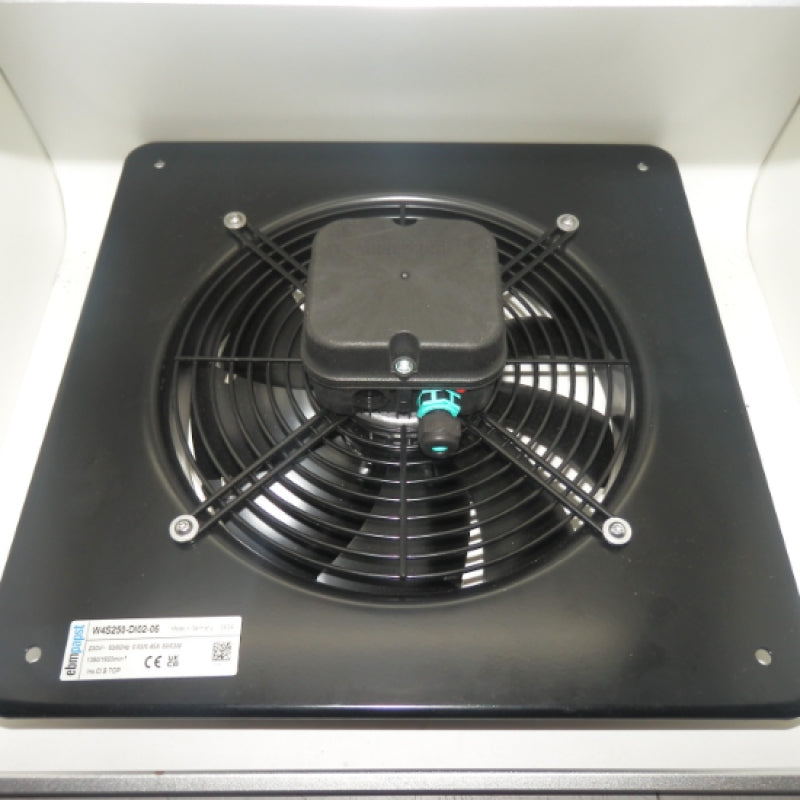

This is an Ebm-Papst W4S250-DI02-06 230V AC Axial Fan. Its part number is W4S250-DI02-06.
This item comes as pictured and does not include any additional parts or accessories.
Specifications:
- Manufacturer: Ebm-Papst

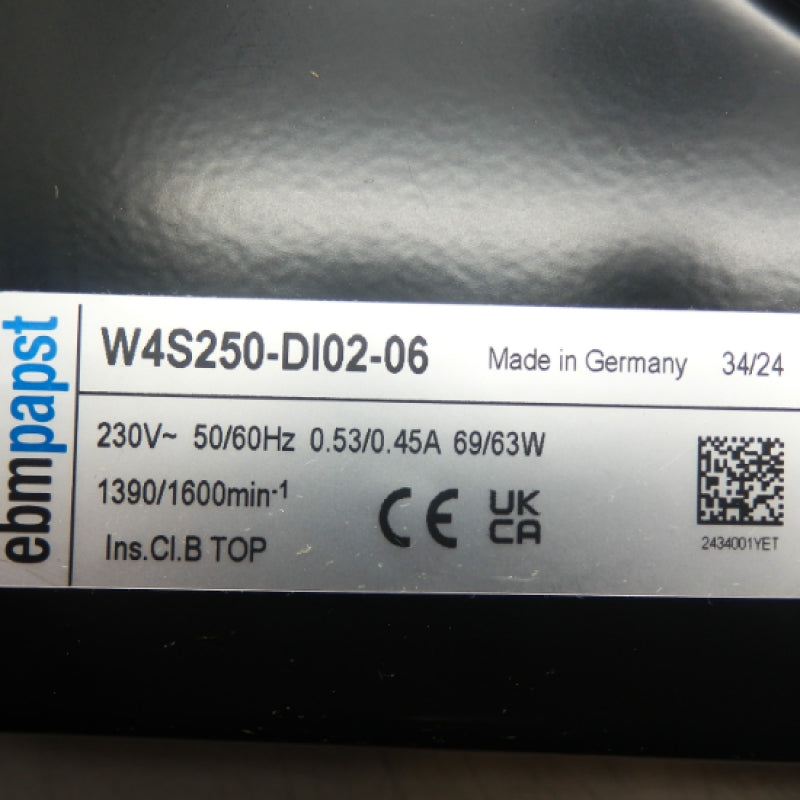

- Part Number: W4S250-DI02-06
- Motor size: 68
- Rotor surface: Painted black
- Blade material: Sheet steel, painted black
- Fan housing material: Sheet steel, pre-galvanized and coated with black plastic
- Guard grille material: Steel, phosphated and coated with black plastic
- Number of blades: 9
- Airflow direction: A
- Direction of rotation: Counterclockwise, viewed toward rotor
- Degree of protection: IP44; installation- and position-dependent as per EN 60034-5
- Insulation class: "B"
- Moisture (F) / Environmental (H) protection class: H1
- Max. permitted ambient temp.for motor (transport/storage): + 80 °C
- Min. permitted ambient temp. for motor (transport/storage): - 40 °C
- Installation position: Shaft horizontal or rotor on bottom; rotor on top on request
- Condensation drainage holes: On rotor side
- Mode: S1
- Motor bearing: Ball bearing
- Electrical hookup: Terminal box
- Motor protection: Thermal overload protector (TOP) internally connected
- With cable: Axial
