Description

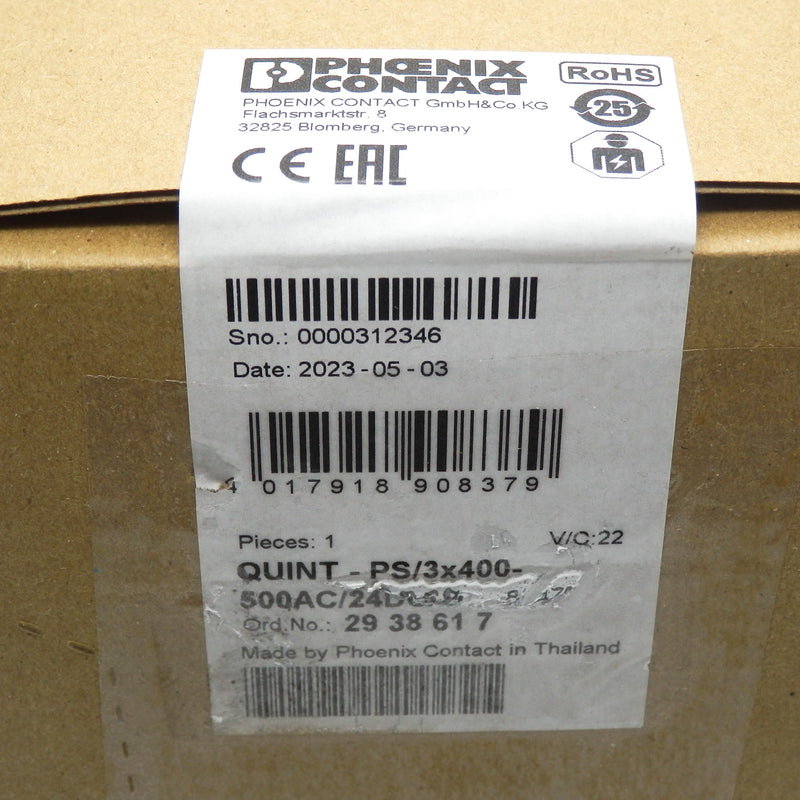

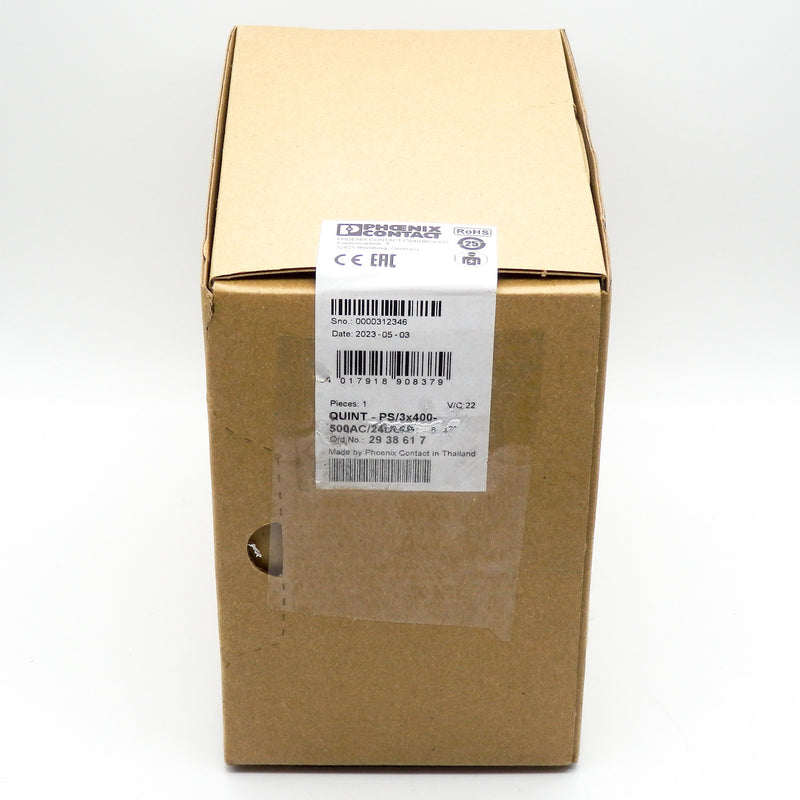

This is a Phoenix Contact Quint 3-Phase Power Supply. Its part number is 2938617 (QUINT-PS-3X400-500AC/24DC/10).
This item comes as pictured and does not include any additional parts or accessories.
Specifications:
- Manufacturer: Phoenix Contact
- Part Number: 2938617 (QUINT-PS-3X400-500AC/24DC/10)
- Input Type: 3-Phase / Three Phase
- Output Power: 240 W
- Input Voltage: 400 VAC to 500 VAC
- Number of Outputs: 1 Output
- Output Voltage-Channel 1: 24 VDC
- Output Current-Channel 1: 10 A
- Industry: Industrial
- Length: 125 mm (4.921 in)
- Width: 85 mm (3.346 in)
- Height: 130 mm (5.118 in)
- Series: QUINT-PS
- Isolation Voltage: 4 kV
- Maximum Operating Temperature: + 70 C
- Minimum Operating Temperature: - 25 C
- Mounting Style: DIN Rail Mount
- Open Frame/Enclosed: Enclosed
