Description

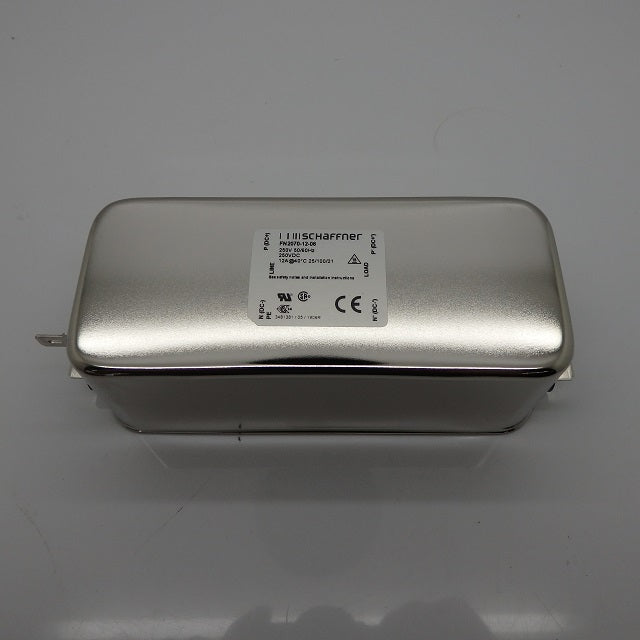

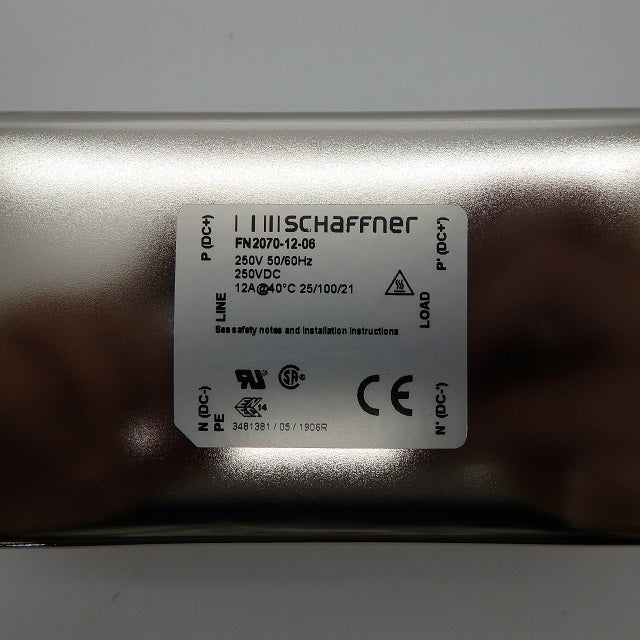

This is a Schaffner 1-Ph 250VAC 12A FN 2070 Series Multi-Stage EMI AC Filter. ITs part number is FN2070-12-06.
This item comes as pictured and does not include any additional parts or accessories.
Specifications:
- Manufacturer: Schaffner
- Part Number: FN2070-12-06
- Current Rating: 12 A
- Dimensions: 45.4 H x 57.5 W x 156 L mm
- Filter Type: Multi-Stage
- Gender: Male
- Inductance: 3.25 mH
- Line to Ground Hipot Rating: 2000
- Line to Line Hipot Rating: 1100 VDC
- Mounting Type: Panel Mount
- Operating Voltage: 250 VAC
- Phase: 1 Phase
- Primary Type: AC, Multi-Stage
- Resistance: 0.22 Mé
- Series: FN 2070 Series
- Type: AC
- Version: Standard
- Voltage Rating: 250 VAC
- Wire Size: 16 AWG
