Description

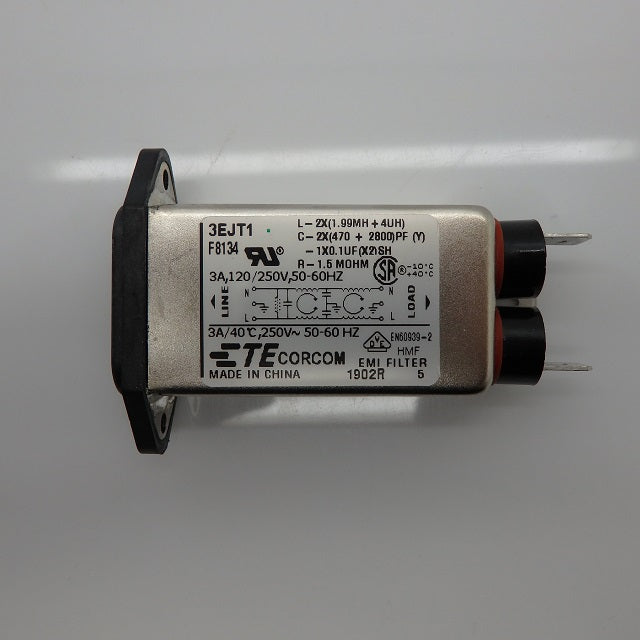

This is a TE Connectivity Corcom 3A 3P Male AC Line Power Inlet Filter. Its part number is 3EJT1.
This item comes as pictured and does not include any additional parts or accessories.
Specifications:
- Manufacturer TE Connectivity
- Part Number 3EJT1
- Current Rating 3A
- Cx Capacitance 0.0064 üF
- Cy Capacitance 0.1016 üF
- Dimensions 22.2mm H x 72.9mm W x 50.3mm L
- Filter Type AC Line
- Gender Male
- Inductance 1.99 mH
- Leakage Current 0.38 mA
- Line to Ground Hipot Rating 2250 VDC
- Line to Line Hipot Rating 1450 VDC
- Mounting Type Panel Mount/Screw
- Number of Poles 3
- Operating Frequency 50/60 Hz
- Operating Temperature -10 to +40 °C
- Operating Voltage 250 VAC
- Panel Cut Out 30.48Ã20.83mm (Front Mount)
- Phase 1
- Primary Type AC Inlet
- Resistance 1.5 Megohms (Discharge), 6000 Megohms (No Discharge)
- Series Corcom EJT Series
- Termination QC
- Type Filter
Version Standard
Voltage Rating 250 VAC
