Description
The HS35 Series combines the rugged, heavy-duty features usually associated with shafted encoders into a hollow shaft style. The HS35 accommodates shafts up to 1" in diameter. With optional insulating inserts, it can be mounted on smaller diameter shafts. It can be mounted on a through shaft or a blind shaft with a closed cover to maintain its environmental rating. The HS35 is also available with a dual output option (inset) to provide redundant encoder signals, dual resolutions, or to supply two separate controllers from a single encoder.

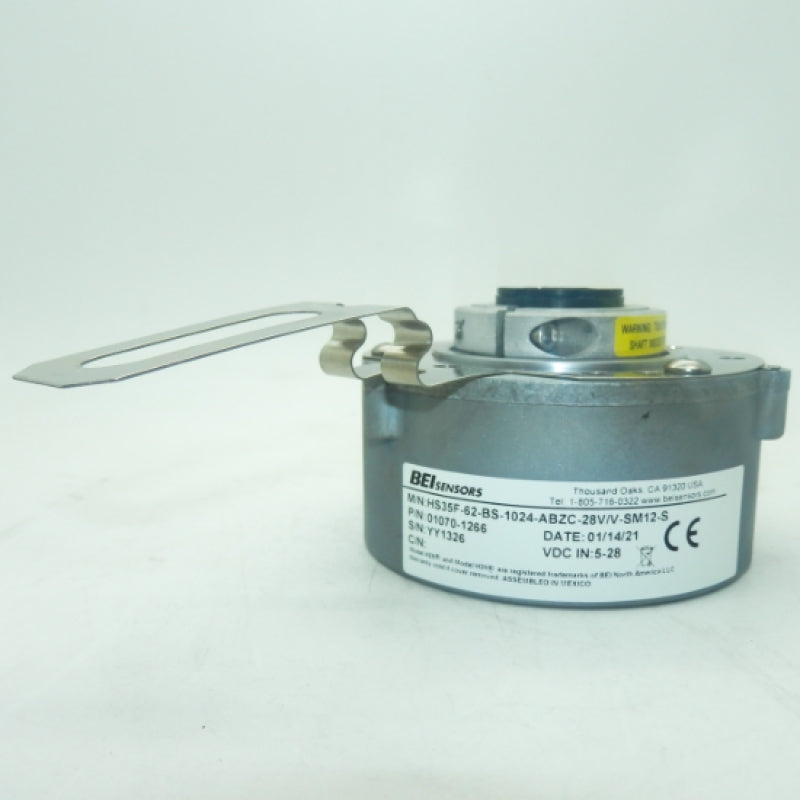

This item comes as pictured and does not include any additional parts or accessories.
Specifications:
- Manufacturer: BEI Sensors
- Part Number: 01070-1266

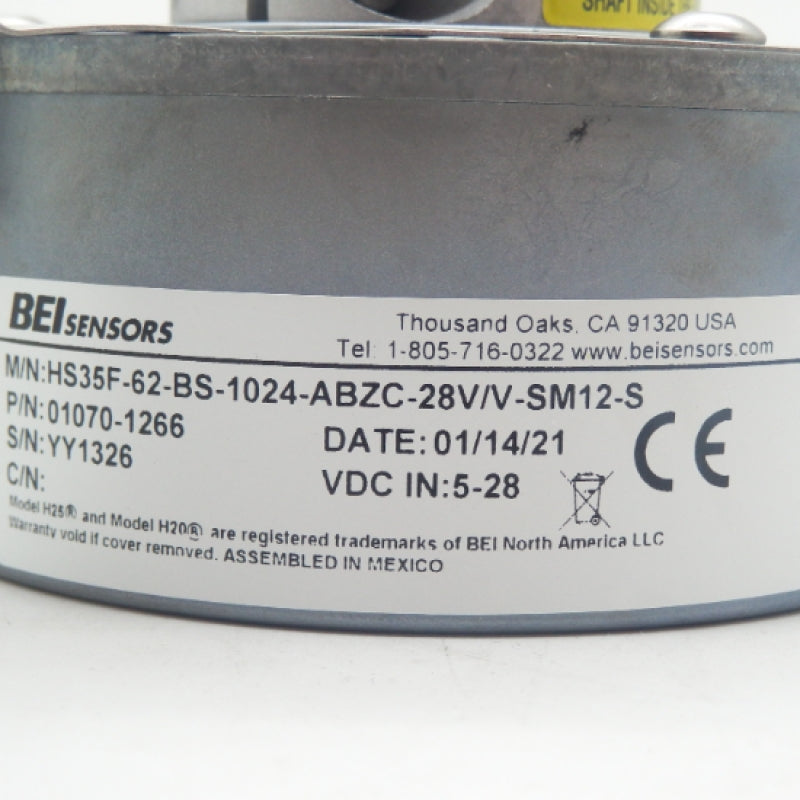

- Alternate Mfr Part Number: HS35F-62-BS-1024-ABZC-28V/V-SM12-S
- IP Rating: IP65
- NEMA Rating: 4 ; 13
- Number of Channels: 2
- Pulse Per Revolution: 1024 PPR
- Special Features: Dual Channel w/Index ; Complementary Outputs
- Supply Voltage: 5-28 V

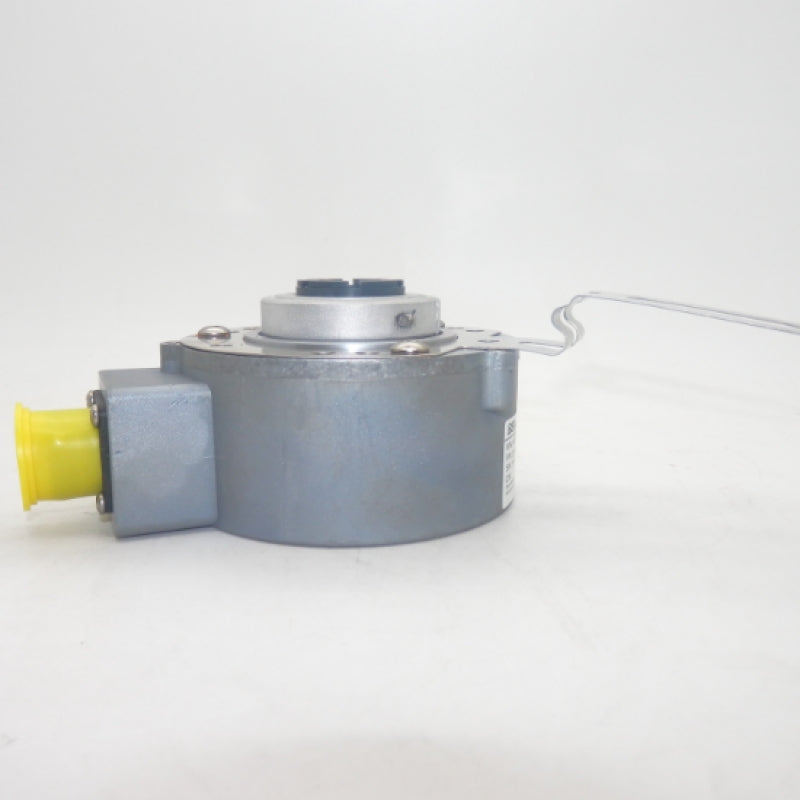

- Termination: MS3112E12-10P
Features:
- Dual bearings and shaft seals
- NEMA 4, 13 and IP65 environmental ratings
- Rugged metal housing
- Sealed connectors or cable glands.
Applications:
- Motor feedback and Vector control
- Printing industries
- Robotic control
- Oil service industries
- Web process control
