Description

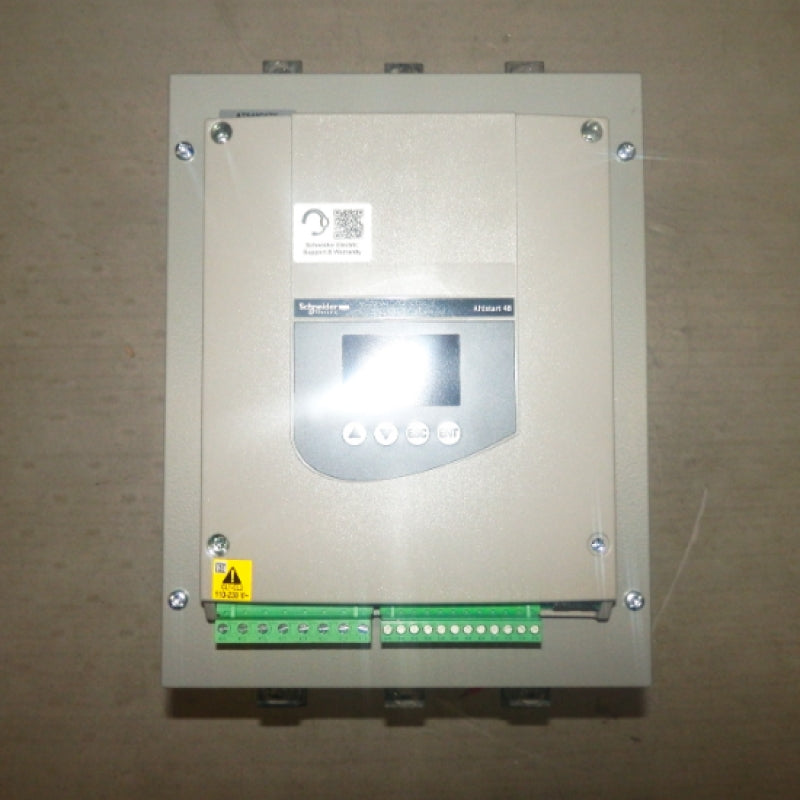

This Altistart 48 soft start/soft stop unit is a controller with 6 thyristors used for torque-controlled soft starting and stopping of three-phase asynchronous motors. It offers soft starting and deceleration functions along with machine and motor protection functions, as well as functions for communicating with control systems. It works at a rated supply voltage from 208V to 690V AC and up to 170A rating. Altistart 48 torque control enables starting without mechanical stress and smooth control of hydraulic transitions, with a single acceleration ramp making adjustments is quick and easy, whatever the load. It is suitable for motors with power rating up to 150hp (at 575V) / 160kW (at 690V) for standards applications and 125hp (at 575V) / 110kW (at 690V) for severe applications.
This item comes as pictured and does not include any additional parts or accessories.
Specifications:
- Manufacturer: Schneider Electric
- Part Number: ATS48C17Y
- Current Rating: 170 A
- Series: Altistart ATS 48 Series
- UPC Code: 785901982388
- Voltage Rating: 690 V
