Description
The THS770012 is a wideband, fully-differential amplifier, with adjustable gain range from +10dB to +13.7dB (with external components). It is designed and optimized specifically for driving 16-bit analog-to-digital converters (ADCs) at input frequencies up to 130MHz, and 14-bit ADCs at input frequencies up to 200MHz.

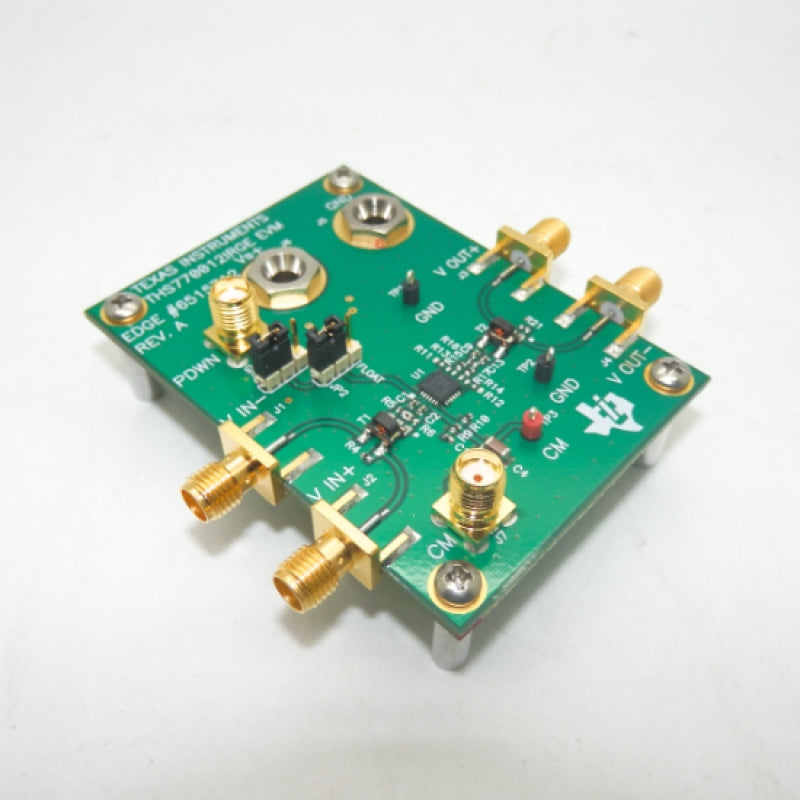

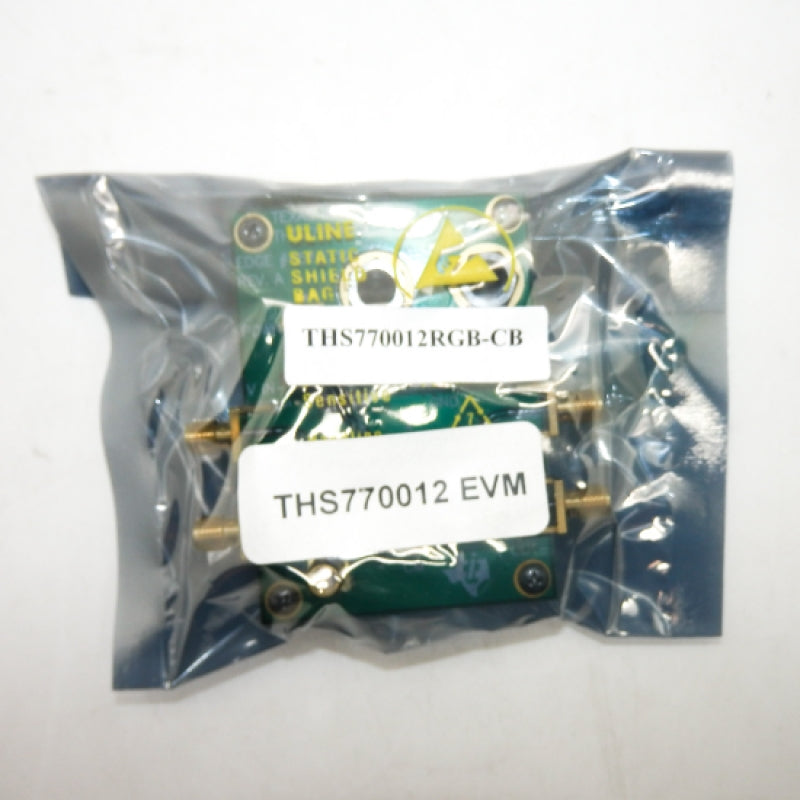

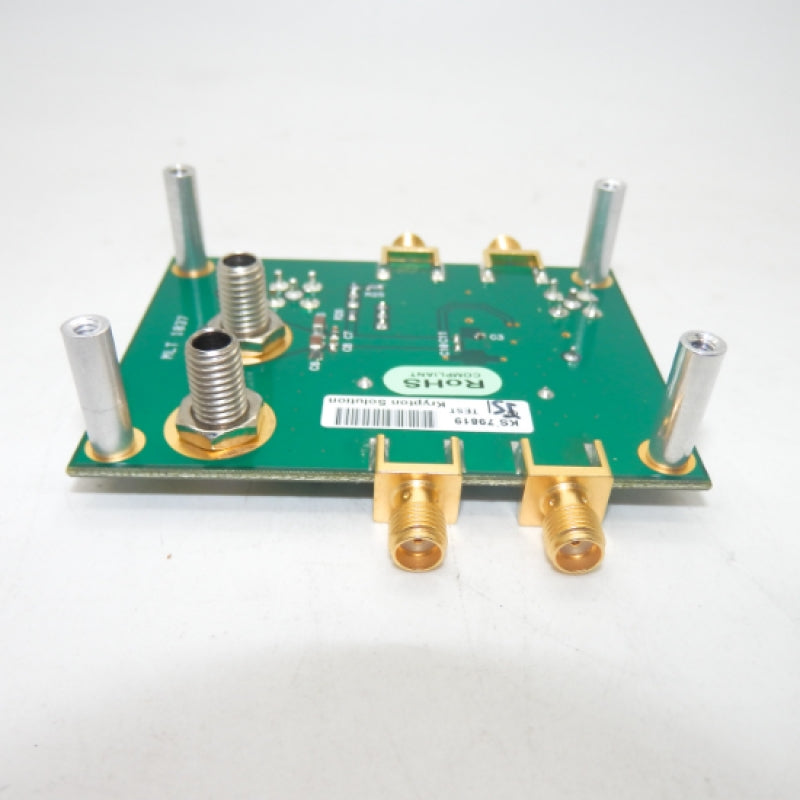

This item comes as pictured and does not include any additional parts or accessories.
Specifications:
- Manufacturer: Texas Instruments
- Part Number: THS770012EVM
Features:
- 900MHz Bandwidth at Gain of +10dB
- 3300V/µs Slew Rate, VOUT = 2V step
- Adjustable Gain: +10dB to +13.7dB
- OIP3: 47dBm, f = 100MHz
- Noise Figure: 10.7 dB, f = 100MHz
Applications:
- 14-/16-Bit ADC Driver
- ADC Driver for Wireless Base Station Signal Chains: GSM, WCDMA, MC-GSM, LTE
- ADC Driver for High Dynamic Range Test and Measurement Equipment
