Description

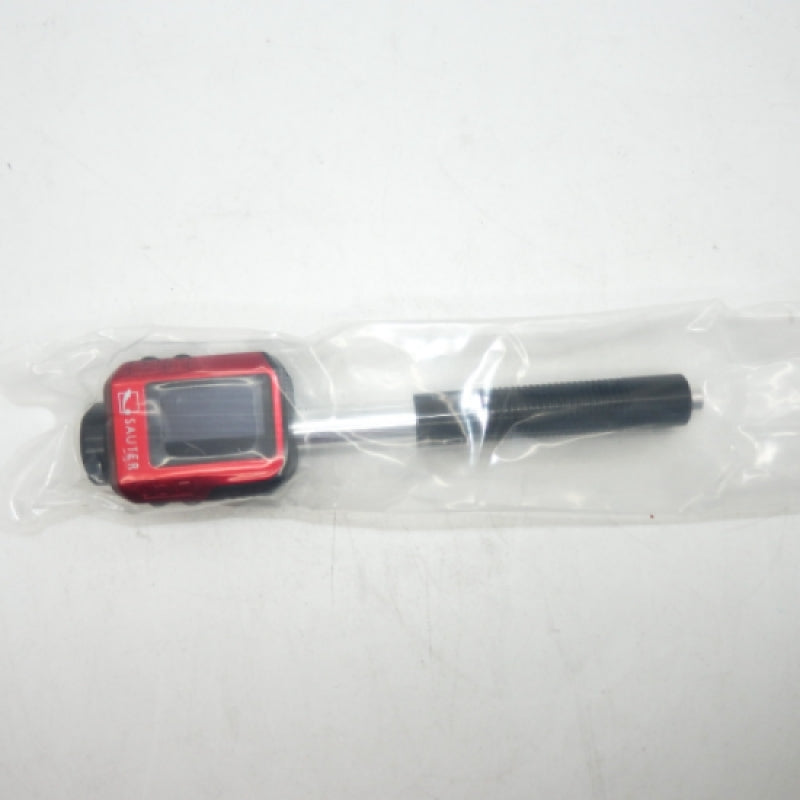

This is a Sauter HN-D Portable Hardness Tester. Its part number is HN-D.

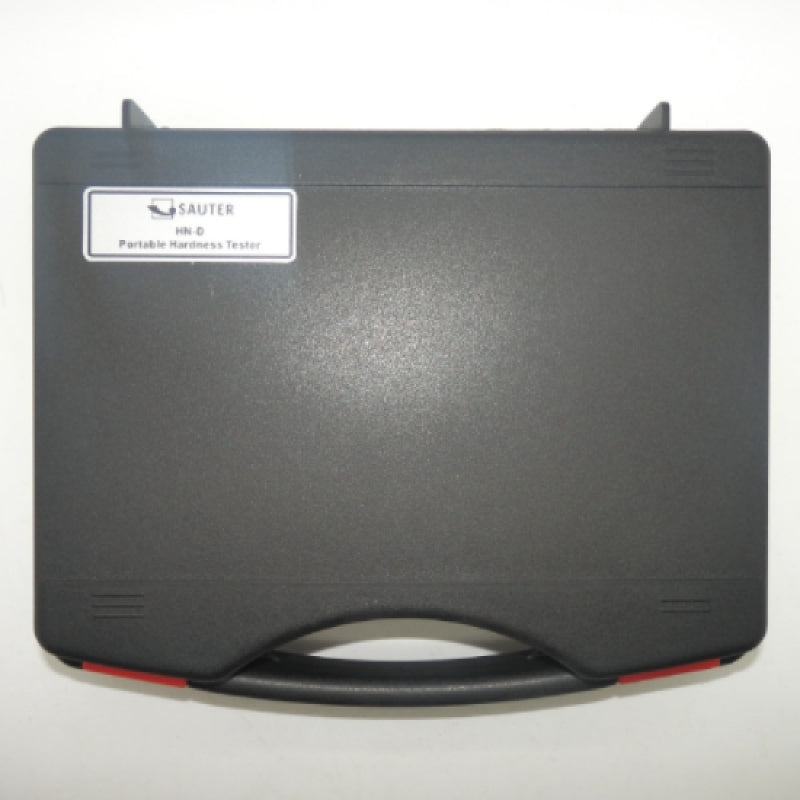

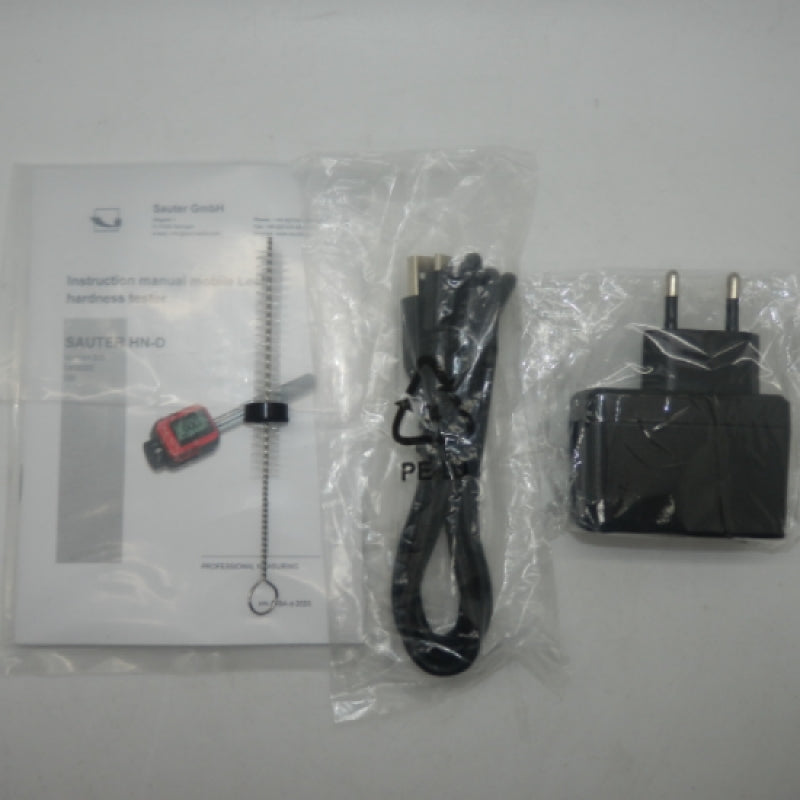

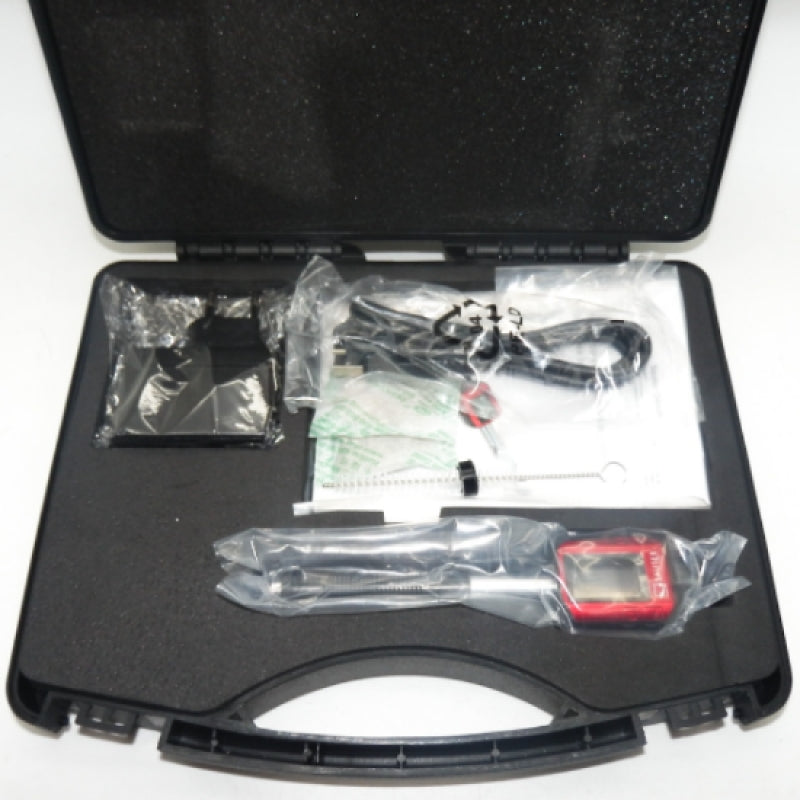

This item comes as pictured and does not include any additional parts or accessories.
Features:
- HN-D is the most advanced integrated tester (which means that the impact device D is integrated): no cables
- Integrated impact direction sensor
- High accuracy (± 4 HL) in any impact direction (360°) – automatically
- Integrated display of results for all common hardness scales
- Large high-contrast LCD for an optimum viewing in all conditions
- Easy calibration
Applications:
- Convenient for all materials
- Best suited for on-site testing of heavy, big or already installed parts
- Handy for difficult to access confined test locations
- Automatic sensing and compensation for impact direction
- Excellent for material selection and acceptance tests.
Technical Specifications:
- Indication range: 0 to 999 HLD
- Accuracy: ± 4HLD
- Measuring direction: any direction
- LCD display: 128 x 64 dot LCD with backlight
- Data memory: 500 groups
- Measurement results can be automatically converted into HRC, HRB, HB, HV, HSD
- Impact energy: 11N
- Weight of the impact body: 5.5 g
- Impact tip: Diameter: 3mm, Material: tungsten carbide, Hardness: ≥ 1600 HV

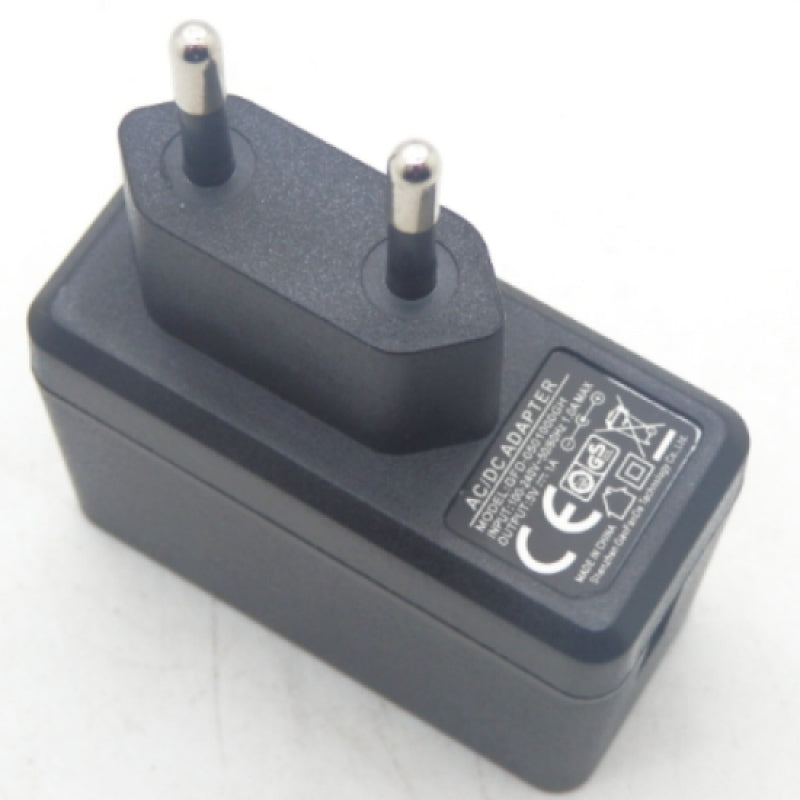

- Power: Li-ion rechargeable battery
- Maximum continuous working time: approx. 16 hours
- Operating environment: - Temperature: -10°C to +60°C, Humidity: 5% bis 95%
- Dimensions: 147 x 35 x 22 mm
- Weight: 63 g
