Description

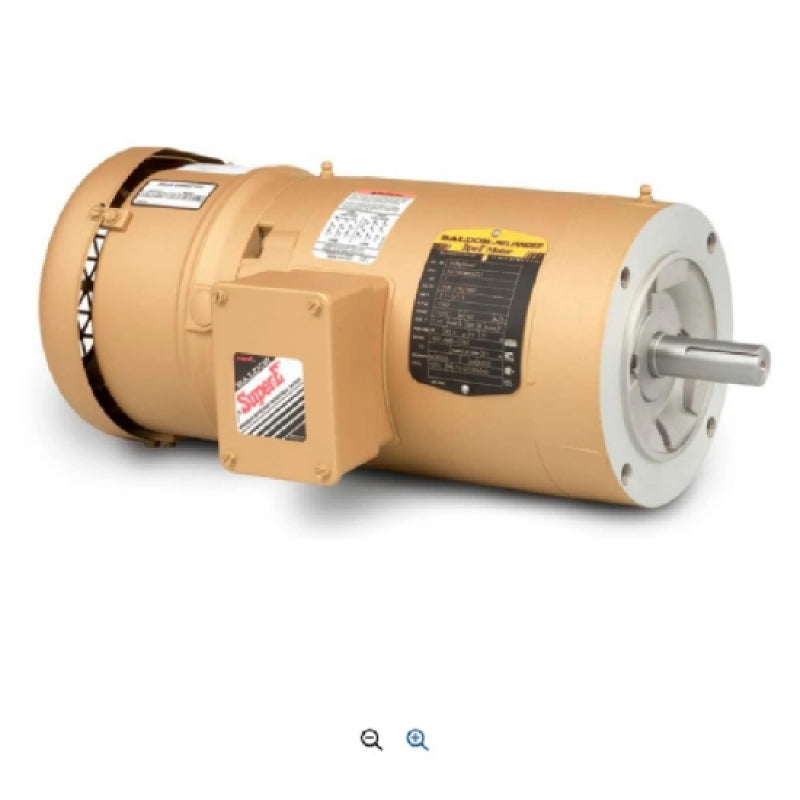

These motors feature Dodge Short Series brakes, which are spring set, magnetically released power off type brakes integrally mounted to the motor for the most compact design. These brakes are single phase with built-in rectifier to DC and are inverter ready. Brakes have a manual release lever. Can be mounted universally in any orientation with no modifications required.
This item comes as pictured and does not include any additional parts or accessories.
Specifications:
- Manufacturer: Baldor-Reliance
- Part Number: VEBM3546T
- Phase: 3 Phase
- Horsepower Rating: 1 HP
- Supply Voltage: 230/460 VAC
- Mounting Type: Flange Mount
- RPM: 1760 RPM
- Series: Short-Series
- Enclosure Type: TEFC
- Frame Type: 143TC
- Application: Unit Handling
Brake Motor Applications:
- Unit and Baggage handling
- Conveyors
- Packaging equipment
- Machine tools
- Hoists
- Elevators and door openers
