Description

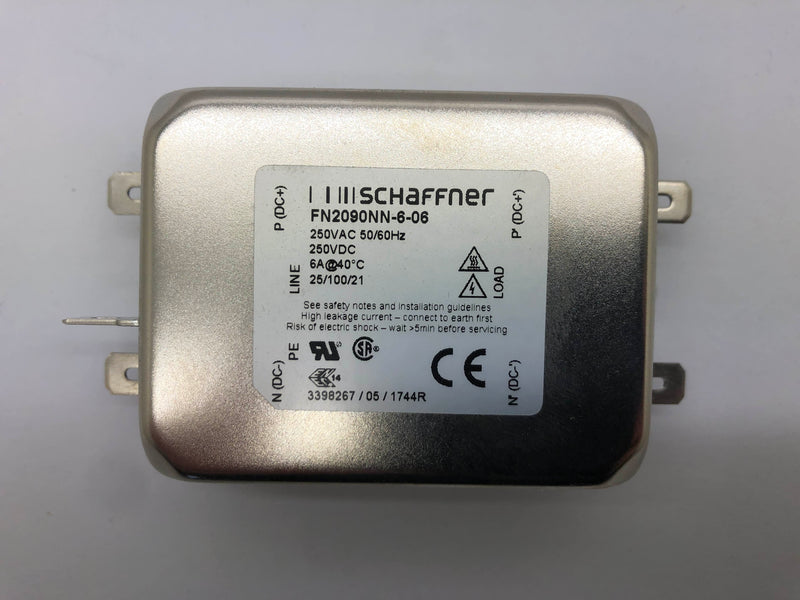

This is a Schaffner 6A 250V Single 1 Phase EMI Filter. Its part number is FN2090NN-6-06. This item comes as pictured and does not include any additional parts or accessories.
Specification:
- Manufacture: Schaffner
- Part Number: FN2090NN-6-06
- Filter Type: 1-Phase Two-Stage Filter
- Voltage Rating: 250 VAC
- Current Rating: 6 A
- Mounting Style: Chassis Mount
- Termination Style: Faston
- Leakage Current: 15.71 mA
- Maximum Operating Temperature: + 100 C
- Minimum Operating Temperature: - 25 C
- Operating Frequency: 0 Hz to 400 Hz
- Capacitance: 0.47 uF , 100 nF , 100 nF
- Inductance: 8 mH
- Height: 30.3 mm
- Width: 54 mm
- Length: 85 mm
