Description

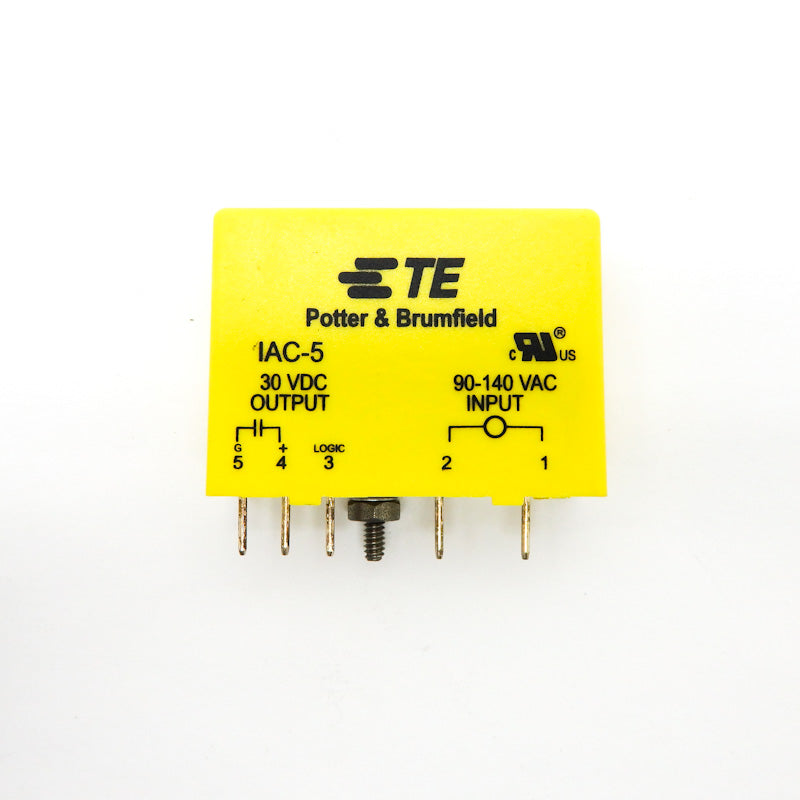

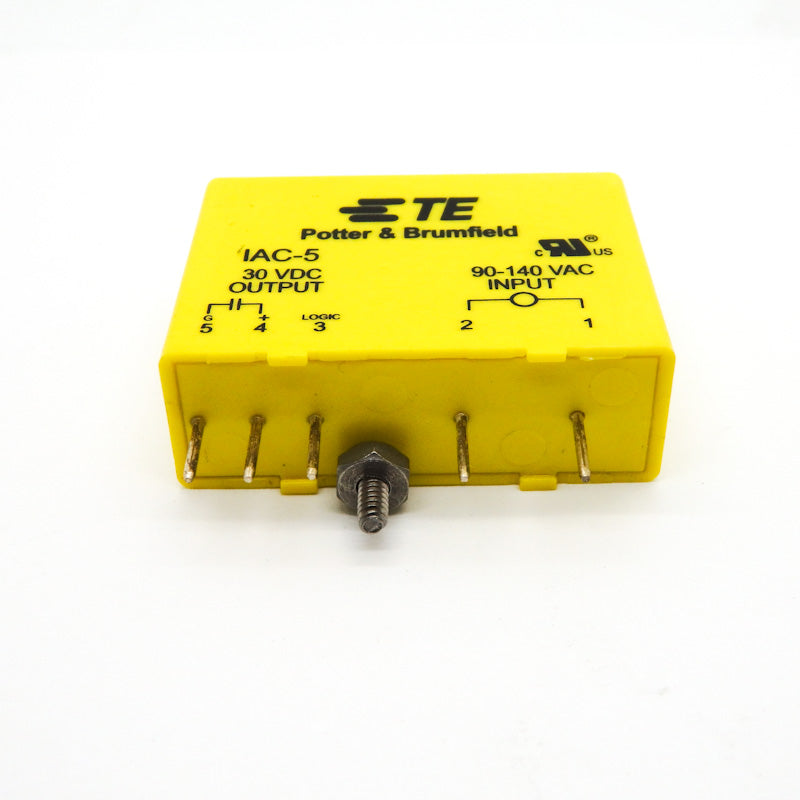

This is a TE Connectivity / Potter & Brumfield I/O Module. Its part number IAC-5.

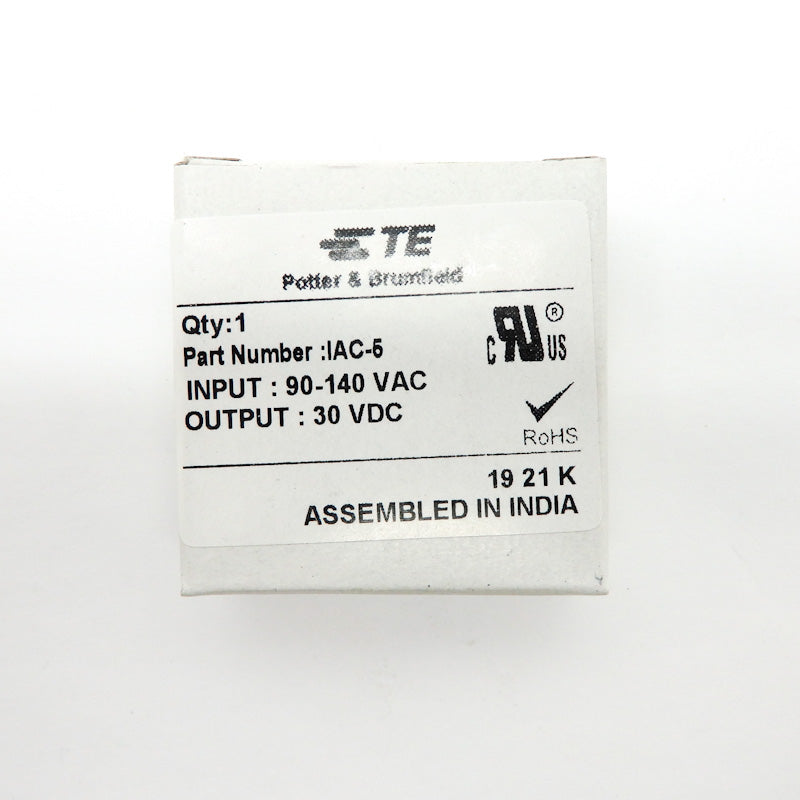

This item comes as pictured and does not include any additional parts or accessories.
Specifications:
- Manufacturer: TE Connectivity
- Part Number: IAC-5
- Connection to Host: Circuit Board
- Dimensions: 43.18 x 31.8 x 15.2 mm
- For Use With: 2IO Series Mounting Board
- Input Current: 6 mA
- Input Resistance: 28 Kiloohms (Typ.)
- Input Type: Digital
- Isolation Voltage: 4000 VAC
- Leakage Current: 10 uAdc (Max.) üAdc (Max.)
- Maximum Operating Temperature: +80 °C
- Minimum Operating Temperature: -30 °C
- Module Type: Control
- Mounting Type: PCB Mount
- Number of Channels: 1
- Number of IO Ports: 1
- Operating Temperature: –30 to +80 °C
- Operating Voltage: 90 V
- Primary Type: Module
- Series: IAC Series
- Special Features: Optical Isolation
- Standards: UL Recognized, CSA Certified
- Supply Voltage: 6 VDC
- Temperature Operating Range: -30 to +80 °C
- Turn Off Time: 30 ms (Nom.)
- Turn On Time: 20 ms
- Type: Input
