Description

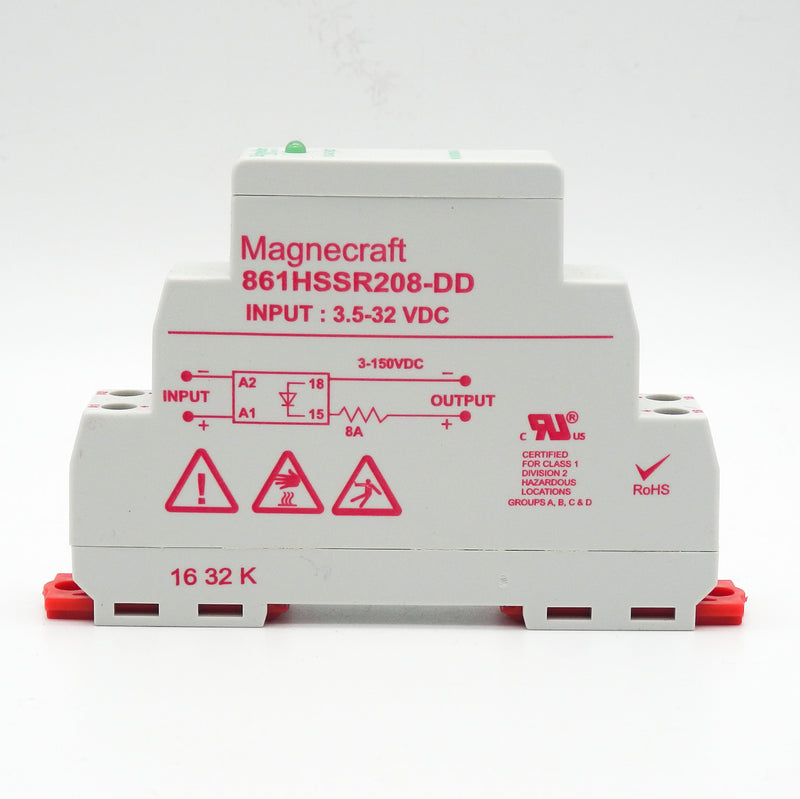

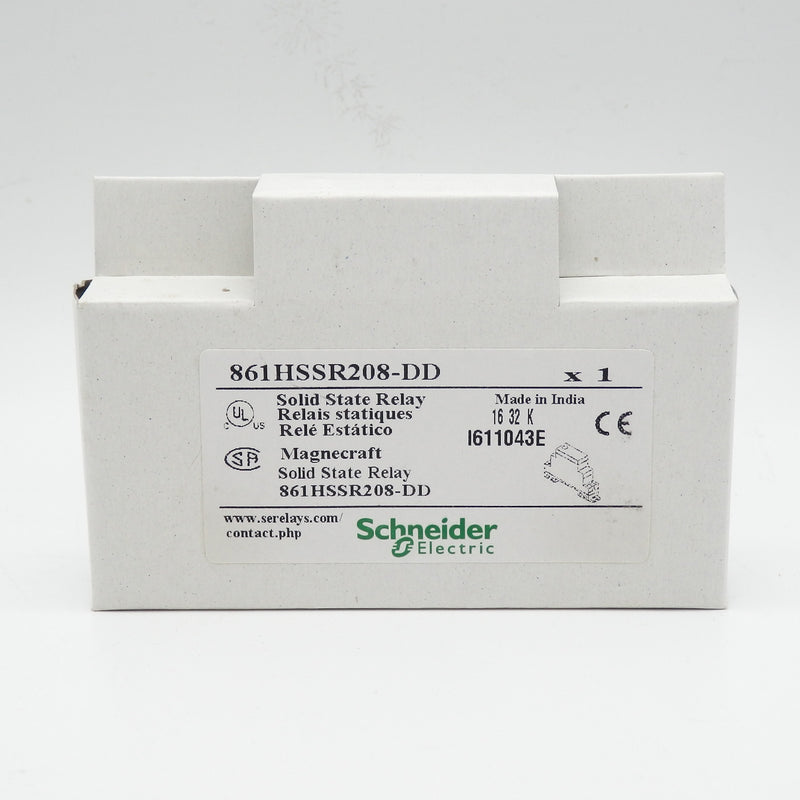

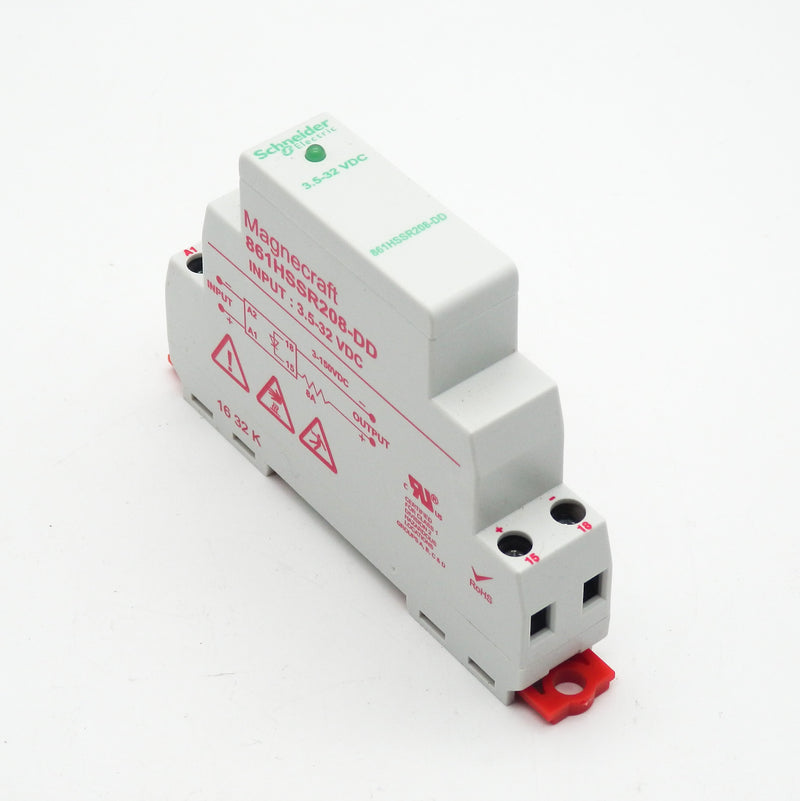

This is a Schneider Electric Magnecraft SPST-NO 8A 3-150V Solid State Relay. Its part number is 861HSSR208-DD.
This item comes as pictured and does not include any additional parts or accessories.
Specifications:
- Manufacturer: Schneider Electric
- Part Number: 861HSSR208-DD
- Type: Indicator
- Mounting Style: DIN Rail Mount
- Load Current Rating: 8 A
- Load Voltage Rating: 3 VDC to 150 VDC
- Relay Contact Form: 1 Form A (SPST-NO)
- Output Type: MOSFET
- Control Voltage Range: 3.5 VDC to 32 VDC
- Input Current: 12 mA
- Minimum Operating Temperature: - 30 C
- Maximum Operating Temperature: + 80 C
- IP Rating: IP20
- Series: 861
- Length: 89.83 mm
- Width: 15.75 mm
- Height: 65 mm
- Contact Form: SPST (1 Form A)
