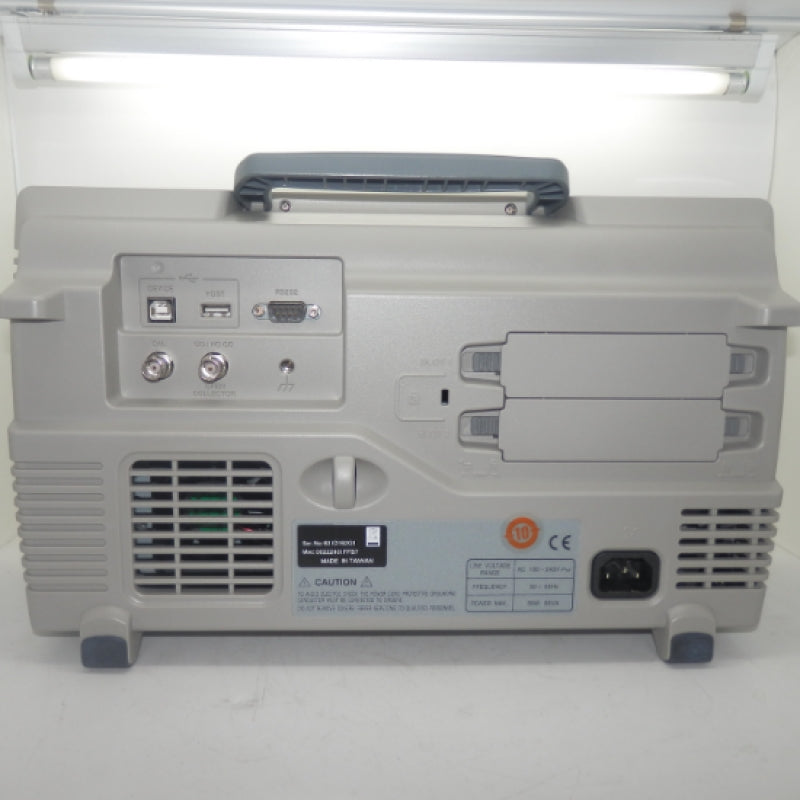

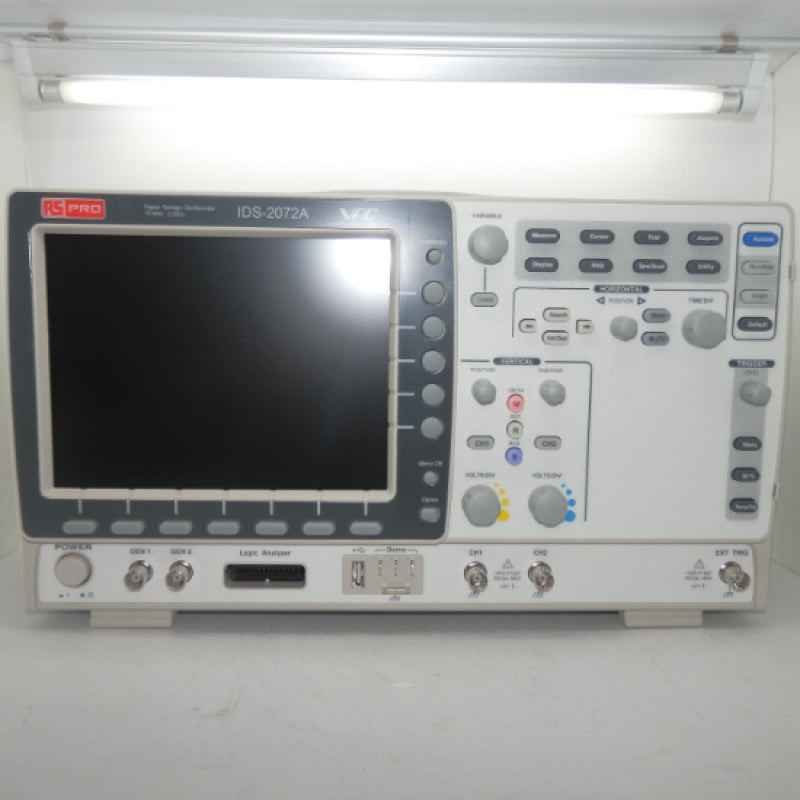

RS Pro IDS-2072A 123-3547 2-Channel 70MHz Digital Storage Oscilloscope

RS Pro IDS-2000A Series digital storage oscilloscopes have Visual Persistence Oscilloscope (VPO) technology, which uses grayscale display of waveforms to distinguish signals from one another according to their occurrence frequencies (color mode can be selected to differentiate the occurrence frequencies among various waveforms on the screen). IDS-2000A Series incorporates 2 Mpts record length, waveform search and segmented memory as standard features.

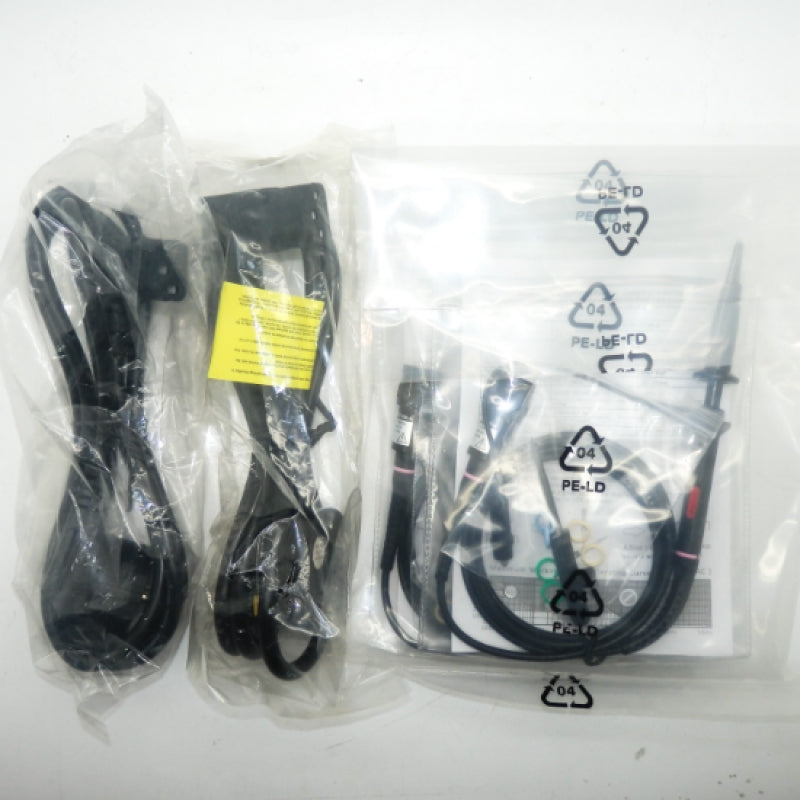

This item comes as pictured and does not include any additional parts or accessories.

Specifications:

1. Manufacturer: RS PRO
2. Part Number: IDS-2072A
3. Number of Channels: 2
4. Plug Type: EU, UK, US
5. Sample Rate: 2 GS/s
6. Warranty: 3 Year Warranty
7. Bandwidth: 70 MHz
8. Type: DSO - Digital Storage
9. Configuration: Bench
10. Memory: 2 Mpts
11. Display Type: TFT LCD SVGA

Applications:

• General industrial
• Electronic and electrical engineering
• Signal analysis
• Trouble diagnostics
• Defect debugging
• Systems development
• Education
