Description
This is a Adventura Technologies CCTV Wiring Solutions 32-Port High Density Distribution Amplifier for Redundant Recording. Its part number is VID-1632HDD. The VID-1632HDD consists of three (3) groups of eight (8) video inputs and outputs. Each group consists of eight (8) BNC inputs, eight (8) BNC Outputs, and four (4) separate DSUB 15-Pin connectors. This allows each group of eight (8) inputs to be distributed to one (1) analog source and two (2) DVRs for redundant recording. The amplifier is powered by two (2) USB ports and one 5VDC direct line. All USB power sources are connected creating a redundant power input structure.

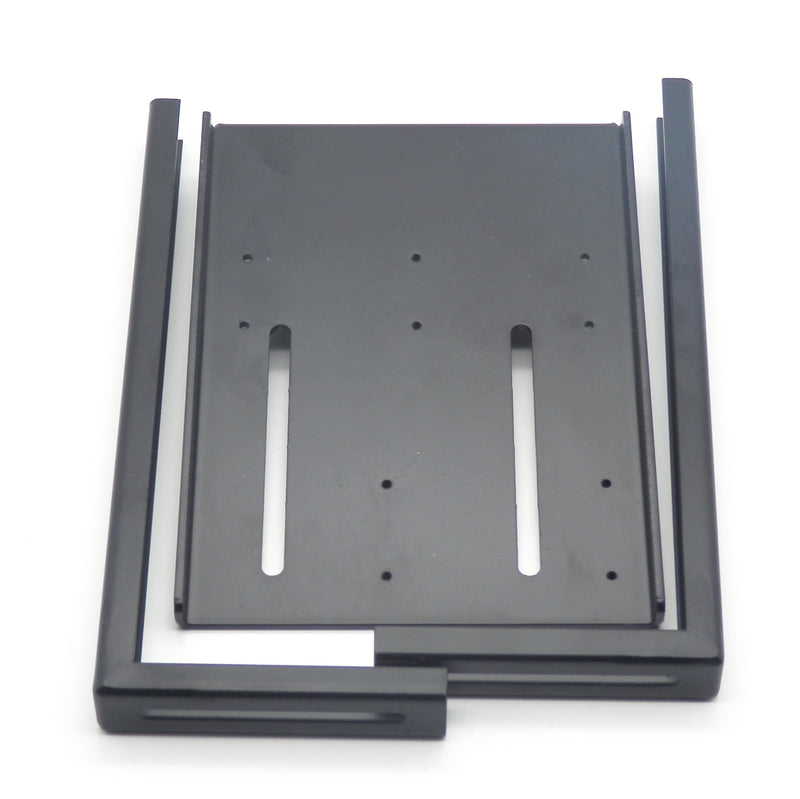

This item comes as pictured and does not include any additional parts or accessories.
Specifications:
- Manufacturer: Adventura Technologies

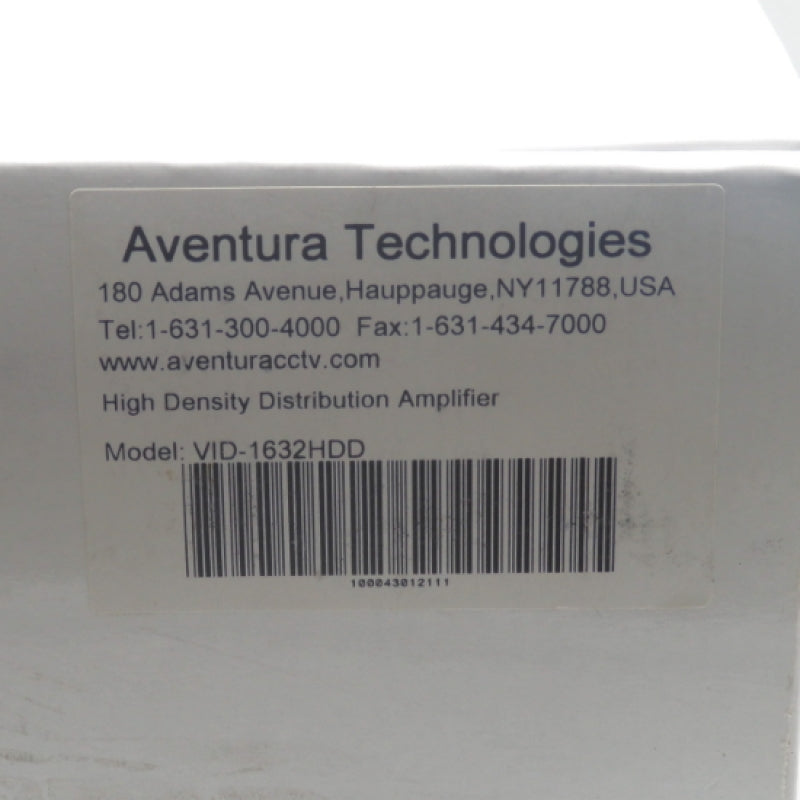

- Part Number: VID-1632HDD

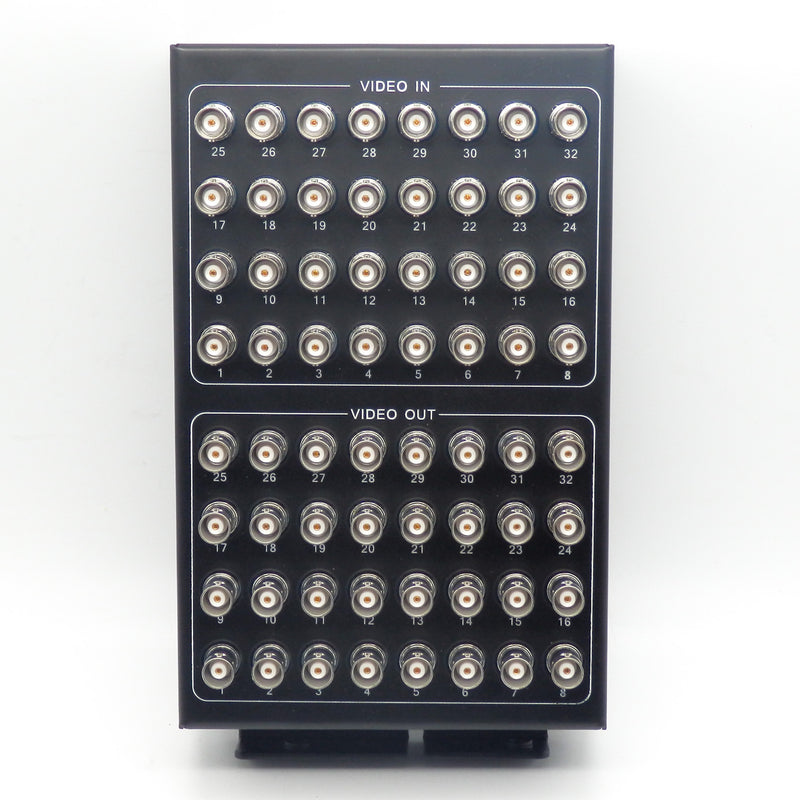

- Video Input Ports: 32 Channels BNC, 1Vp-p, 75 ohms
- Video Output Ports: 32 Channels BNC, 1Vp-p, 75 ohms

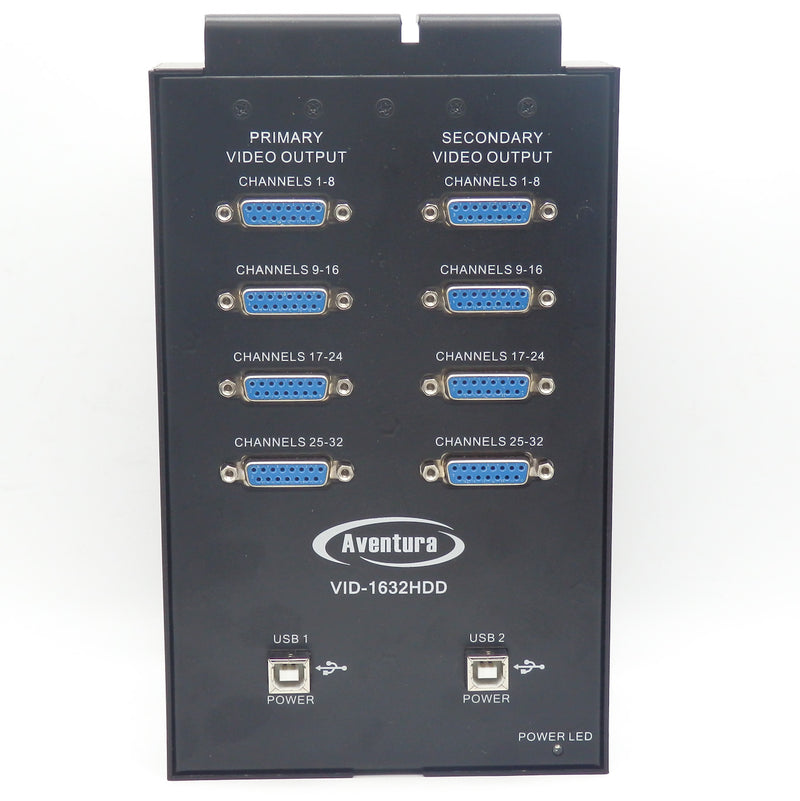

- Primary Connection: DSUB 15-Pin Connection to Primary & Redundant DVRs
- Impedance: 75 ohms
- Input Voltage 5 V USB (Power only)
- Power Inputz; 3 X USB Ports (to be powered from DVR)
- Dimension: 1.9" x 5.25" x 8.5"
- Material: Steel, Powder Coat
- Operating: 32 - 120° F, 85% non-condensing humidity
