Description

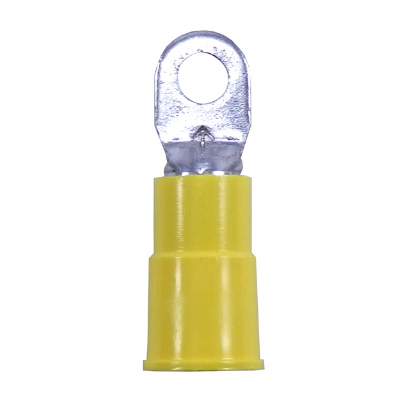

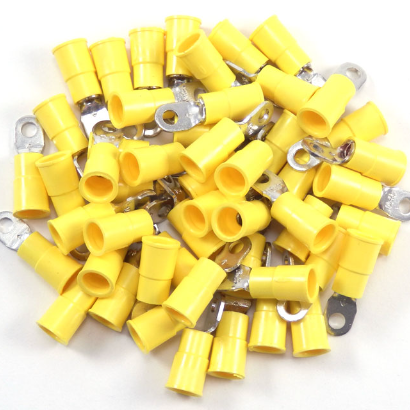

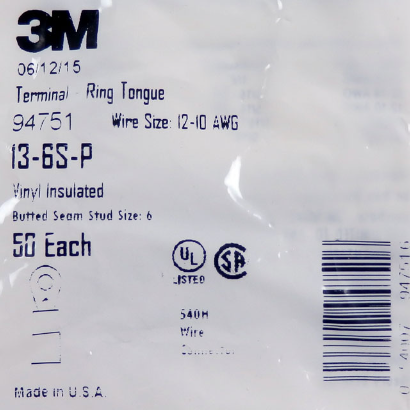

This is a 50 pack of 3M vinyl insulated 12-10 AWG butted seam stud size 6 ring tongue terminals. Its part number(s) are 13-6S-P and 94751.
This item comes as pictured and does not include any additional parts or accessories.
Specifications:
- Manufacturer: 3M
- Part Number(s): 13-6S-P / 94751
- Terminal Type: Circular
- Stud/Tab Size: 6 Stud
- Thickness: 0.040" (1.02mm)
- Width - Outer Edges: 0.280" (7.11mm)
- Length - Overall: 0.980" (24.89mm)
- Mounting Type: Free Hanging (In-Line)
- Termination: Crimp
- Wire Gauge: 10-12 AWG
- Insulation: Insulated
- Color: Yellow
- Contact Material: Copper, ETP
- Contact Finish: Tin
- Insulation Diameter: 0.250" (6.35mm)
- Material - Insulation: Vinyl
