Description

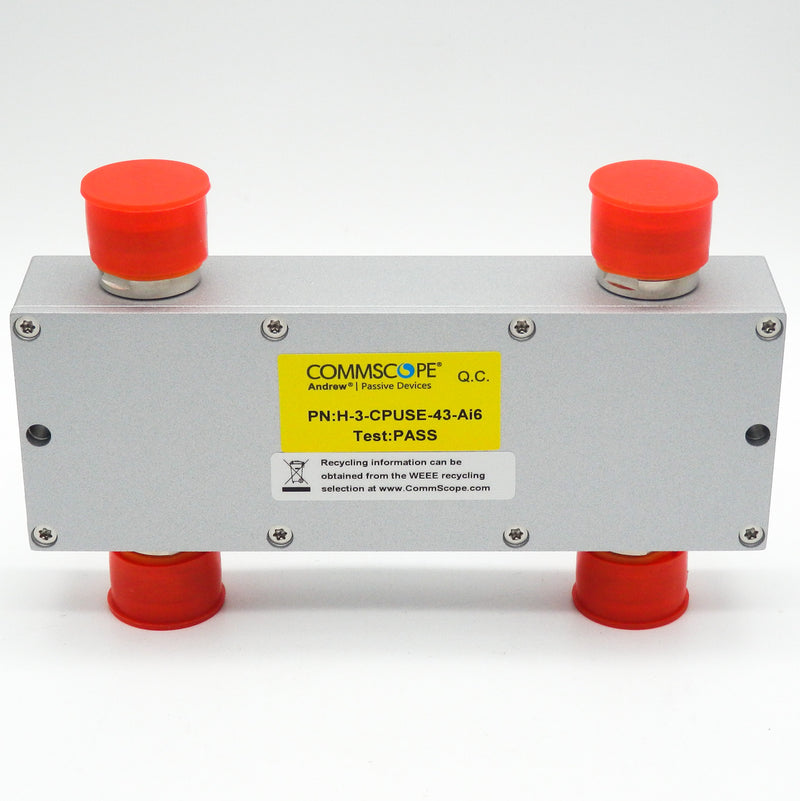

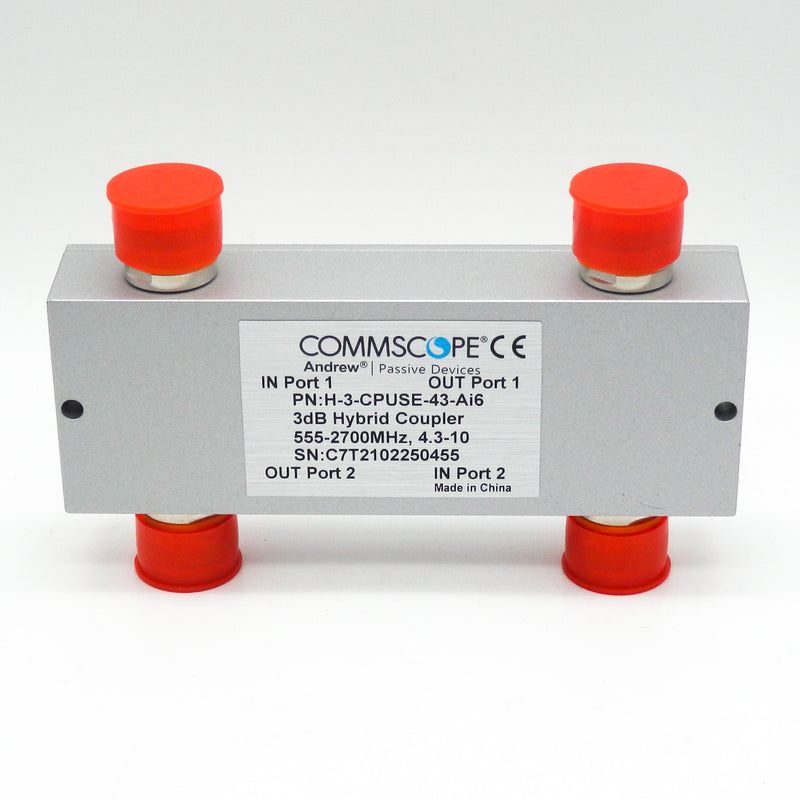

This is a Andrew CommScope 555-2700MHz 4.3-10 3dB Low PIM Air Dielectric Hybrid Coupler. Its part number is H-3-CPUSE-43-AI6.
This item comes as pictured and does not include any additional parts or accessories.
Specifications:
- Manufacturer Andrew CommScope
- Part Number H-3-CPUSE-43-AI6
- Height 26 mm 1.024 in
- Width 85 mm 3.346 in
- Length 138 mm 5.433 in
- Device Type: Hybrid
- Application Indoor/Outdoor
- Color Silver
- Inner Contact Plating Silver
- Interface 4.3-10 Female
- Outer Contact Plating Trimetal
- 3rd Order IMD -162 dBc
- 3rd Order IMD Test Method Two +43 dBm carriers
- Insertion Loss at Frequency Band 0.2 dB @ 5552700 MHz
- Return Loss, minimum 20.8 dB
- Average Power, maximum 200 W
- Coupling 3.1 dB
- Coupling Tolerance ±0.6dB @ 5752700 MHz | ±0.8dB @ 555575 MHz
- Impedance 50 ohm
- Isolation at Frequency Band 25 dB @ 5552700 MHz
- Operating Frequency Band 555 2700 MHz
- Peak Power, maximum 1 kW
- Reflected Power, maximum 200 W
- VSWR 1.2
- Coupling Nut Proof Torque 7 N-m | 61.955 in lb
