Description

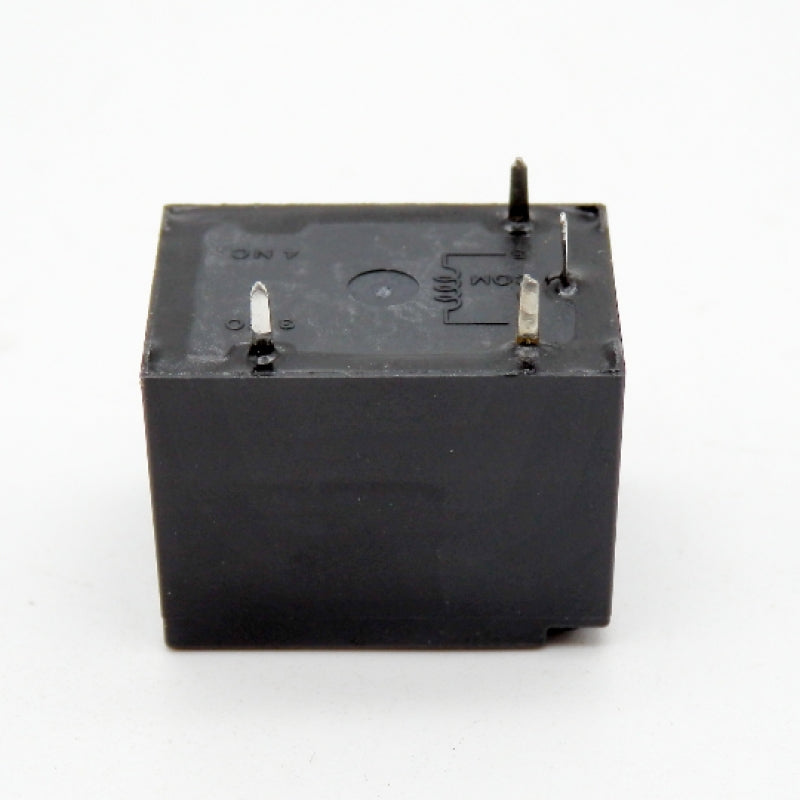

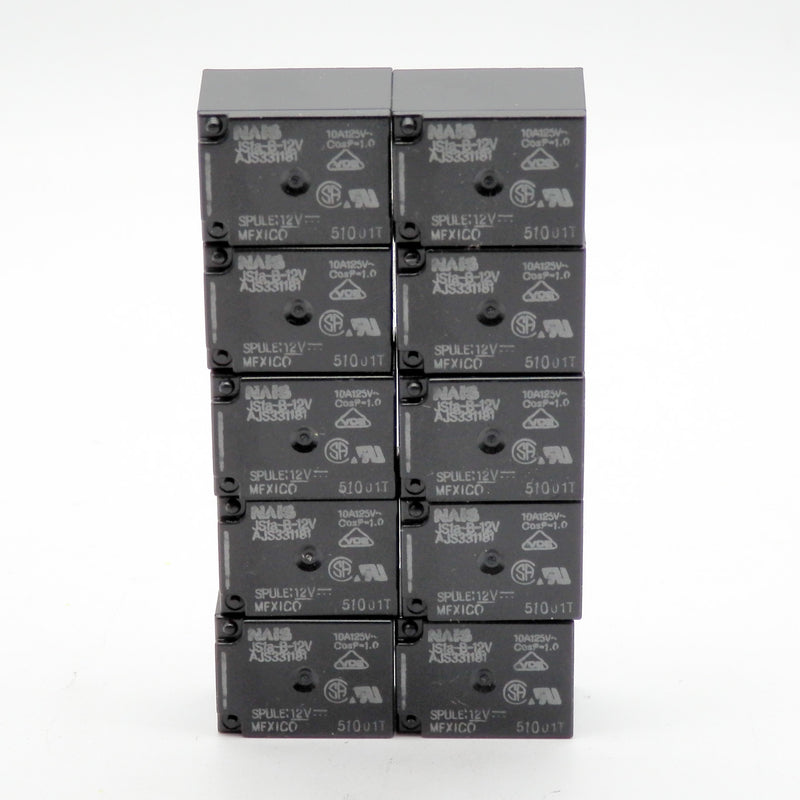

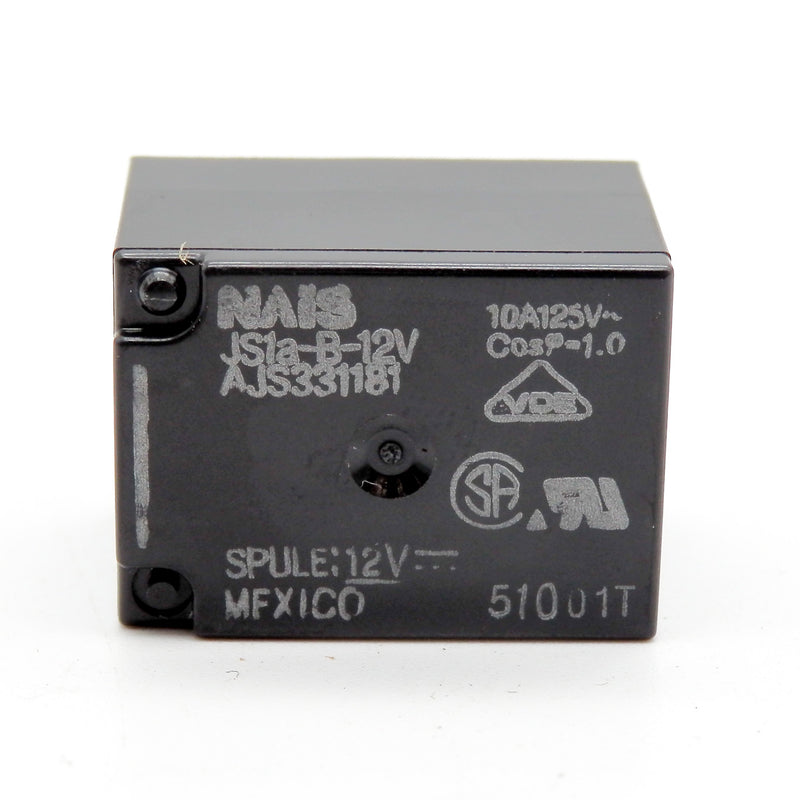

This is a 10 Pack of Panasonic NAIS 10A 12VDC Sealed PCB Power Relay. Its part number is JS1A-B-12V.
This item comes as pictured and does not include any additional parts or accessories.
Specifications:
- Manufacturer: Panasonic
- Part Number: JS1A-B-12V
- Mounting Type: Through Hole
- Coil Voltage: 12VDC
- Contact Form: SPST-NO (1 Form A)
- Contact Rating (Current): 10 A
- Switching Voltage: 250VAC, 100VDC - Max
- Load - Max Switching: 2500VA, 1000W
- Coil Current: 30 mA
- Coil Type: Non Latching
- Termination Style: PC Pin
- Seal Rating: Sealed - Fully
- Coil Insulation: Class B
- Must Operate Voltage: 8.4 VDC
- Must Release Voltage: 1.2 VDC
- Operate Time: 10 ms
- Release Time: 10 ms
- Operating Temperature: -40°C ~ 85°C
- Contact Material: Silver Alloy
- Approval Agency: CSA, TUV, UR, VDE
- Coil Resistance: 400 Ohms
- Base Product Number: JS1A-B
