Description

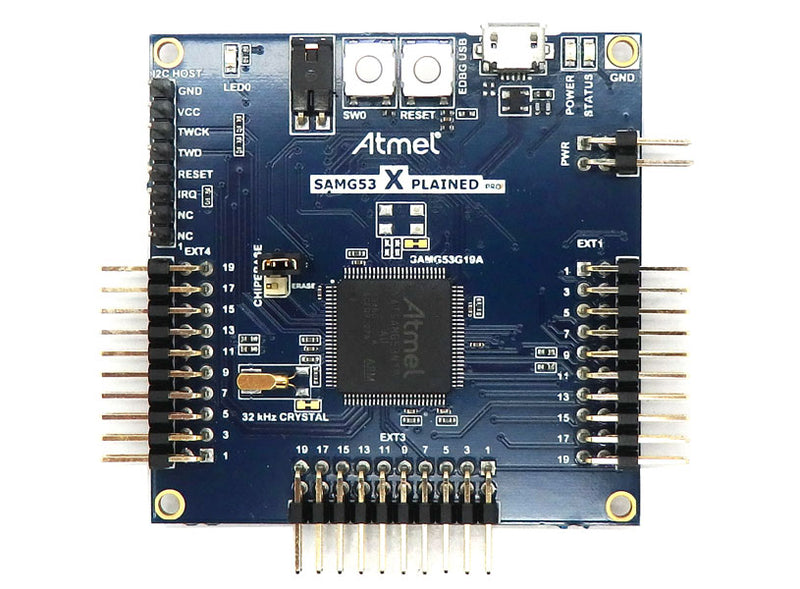

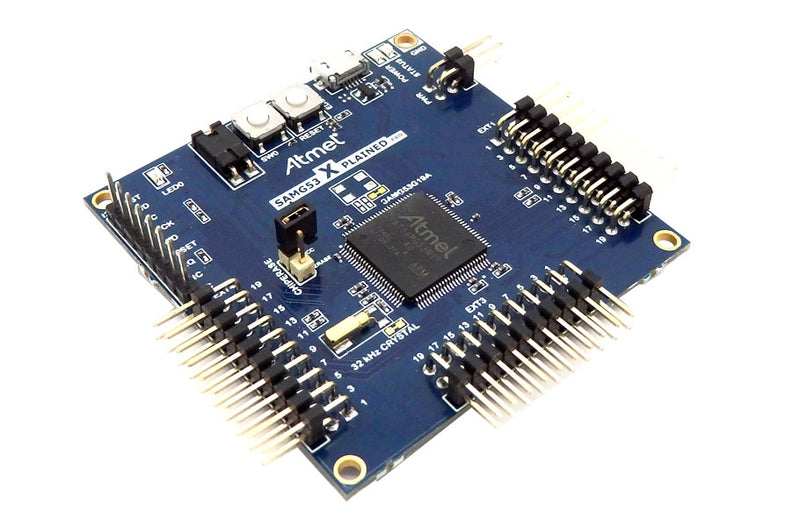

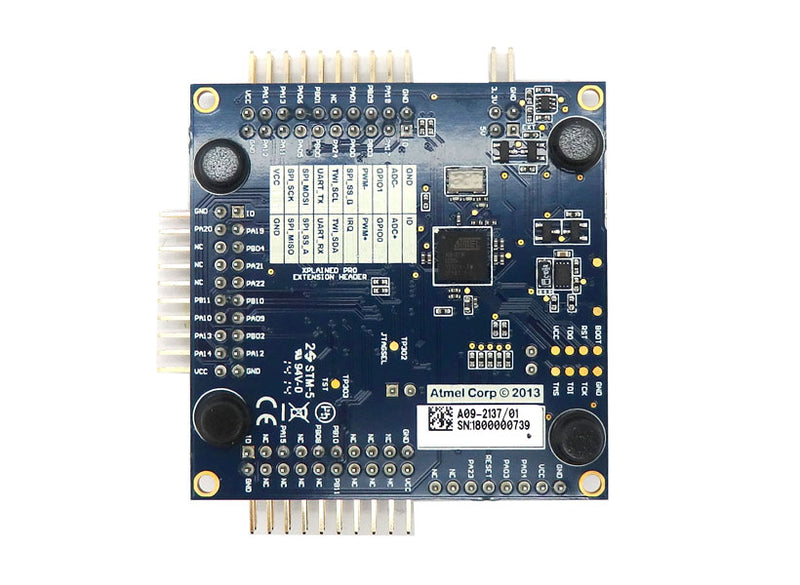

This is an Atmel SAMG53 Xplained Pro Evaluation Kit. It is an evaluation platform that provides the full Atmel microcontroller experience. The platform offers Atmel Studio Integration, Atmel Software Framework (ASF) drivers and demo code, evaluation kit and more. Its part number is ATSAMG53-XPRO. This item is new and has never been used. It comes as pictured and does not include any additional parts or accessories.
Specifications:
- Manufacturer: Atmel
- Product: Evaluation Kit
- Part Number: ATSAMG53-XPRO
- Tool Is For Evaluation Of: Xplained Pro
- Core: ARM Cortex M4
- Data Bus Width: 32 bit
- For Use With: ATSAMG53
- Interface Type: Serial
- Operating Supply Voltage: 3.3V
Features:
- SAMG53N19A microcontroller
- One mechanical reset button
- One mechanical user pushbutton â Wake-up, bootloader entry or general purpose
- One yellow user LED
- 32.768kHz crystal
- I²C interface for SAM G53 high speed I²C slave
- 3 Xplained Pro extension headers
- Embedded Debugger â Auto-ID for board identification in Atmel Studio. One yellow status LED. One green board power LED. Symbolic debug of complex data types including scope information. Programming and debugging. Data Gateway Interface: UART, I²C, 4 GPIOs. Virtual COM port (CDC).
- USB powered
- Supported with application examples in Atmel Software Framework
