Description
The CMB-Series is a compact, single pole, push-to-reset family of thermal circuit breakers designed to protect equipment. Utilizing simple, precision design with few moving parts, these breakers offer cost effective, extremely reliable circuit protection with high resistance against shock and vibration.

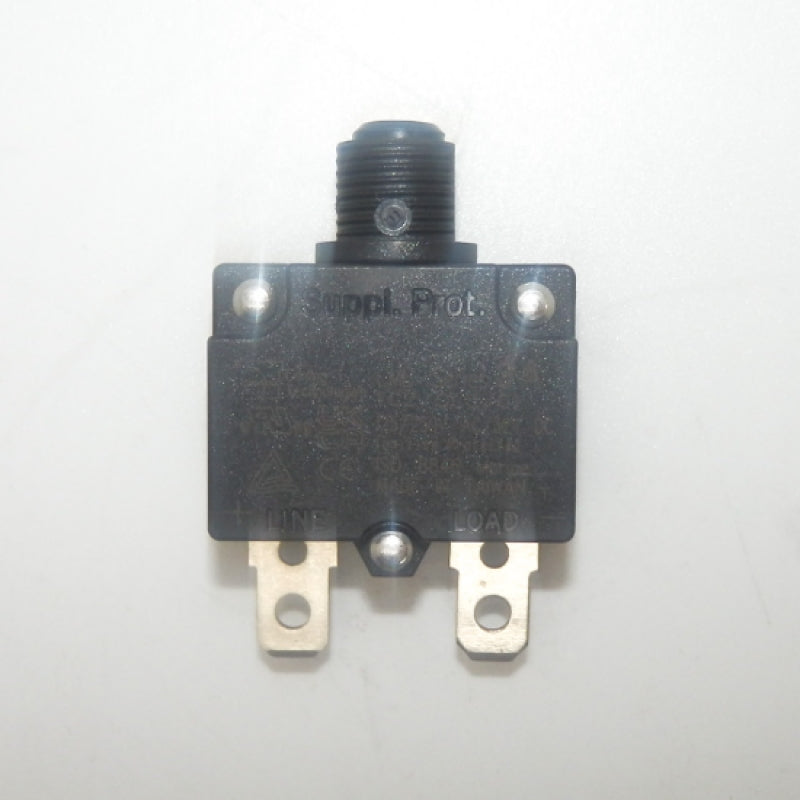

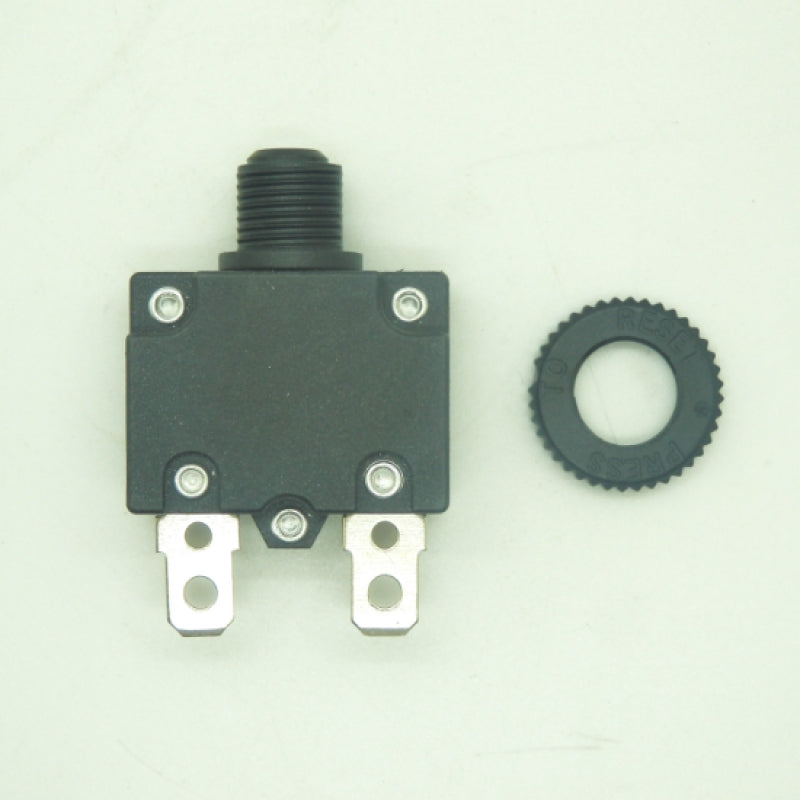

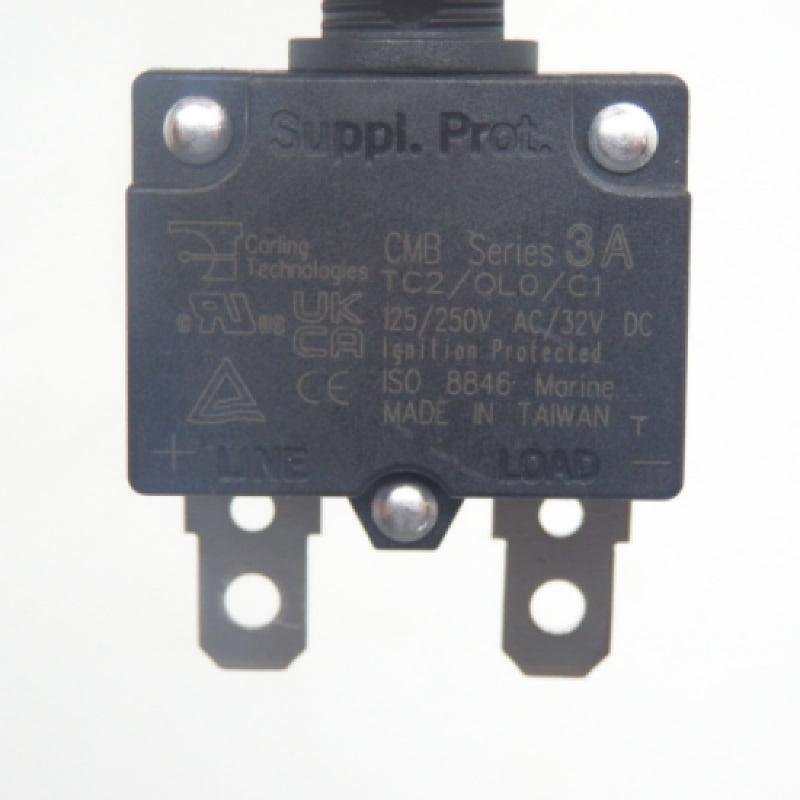

This item comes as pictured and does not include any additional parts or accessories.
Specifications:
- Manufacturer: Carling Technologies
- Part Number: CMB-033-11C3N-B-A
- Series: CMB Series
- Mounting Hole Size: Dia. 0.441 x H 0.394 in
- Mounting Type: Chassis, Rear Mount
- Number of Poles: 1
- Insulation Resistance: 100 MOhms
- Trip Time: 0.3 s
- Voltage Rating: 250 V, 32 V
- Overload: Thermal
- Actuator Type: Push-To-Reset
- Termination: QC Tabs
- Current Rating: 3 A
- Bushing Material: Plastic
- Button Color: Black
Application:
For household appliances, transportation, marine, power strips, medical equipment, audio visual equipment, and power supplies.
