Description

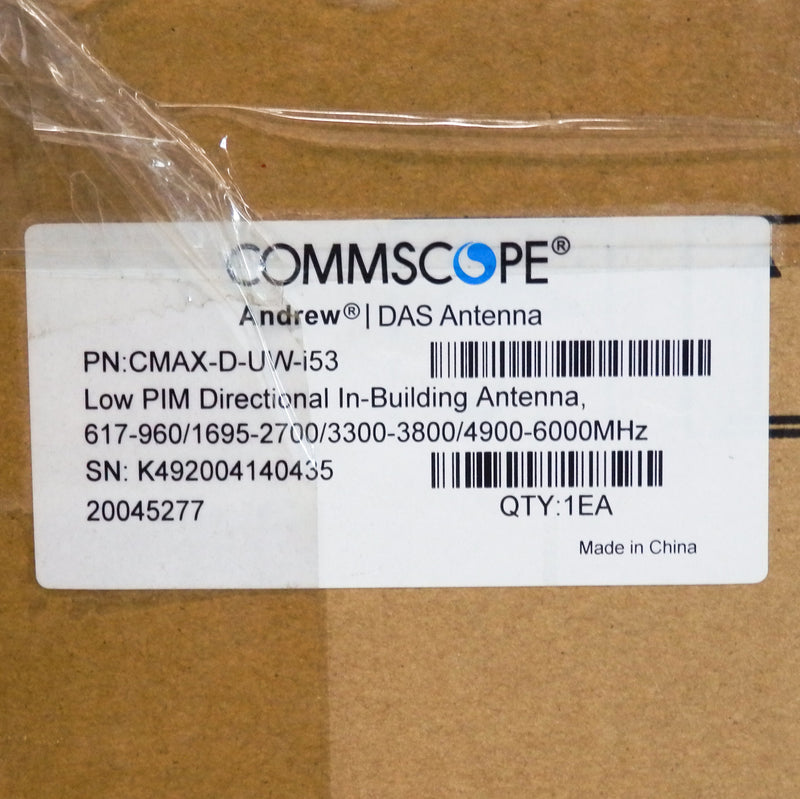

This is a CommScope Low PIM Directional In-Building Antenna 617–960 MHz, 1695–2700, 3300-3800 and 4900-6000MHz. Its part number is CMAX-D-UW-I53.

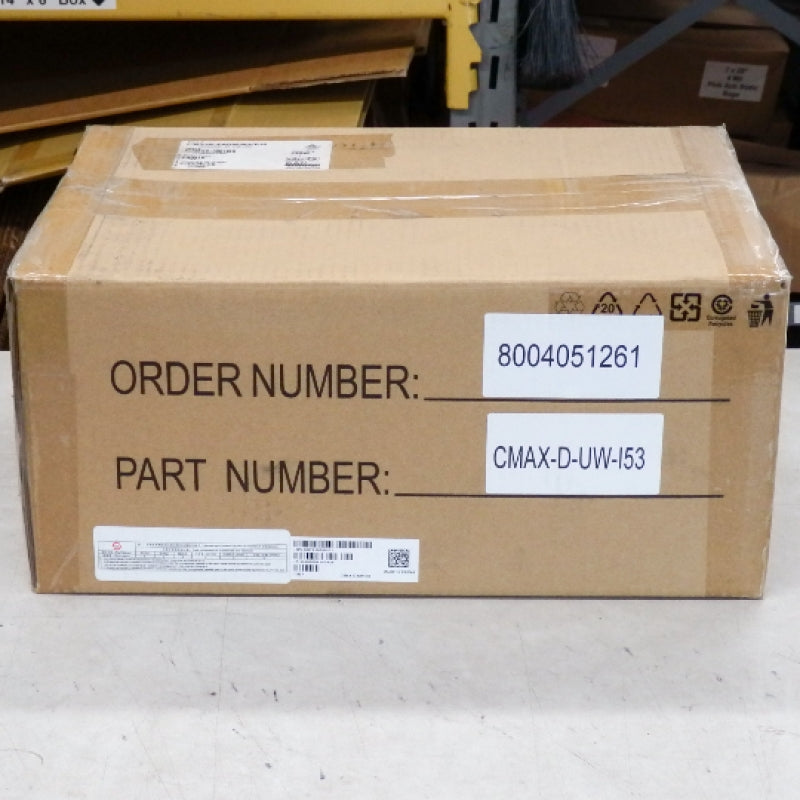

This item comes as pictured and does not include any additional parts or accessories.
Specifications:
- Manufacturer CommScope
- Part Number CMAX-D-UW-I53
- Product Type In-building antenna
- Application Indoor
- Antenna Type Directional
- Antenna Array Characteristic SISO
- Polarization Vertical
- Color Light Gray (RAL 7035)
- Mounting 4-hole wall mounting plate and hardware (included)
- Number of Ports 1
- Pigtail Cable 670-141SXE, plenum rated
- Radome Material PVC
- RF Connector Interface 4.3-10 Female
- Width 296 mm | 11.654 in
- Depth 126 mm | 4.961 in
- Length 301 mm | 11.85 in
- Pigtail Length 420 mm | 16.535 in
- Impedance 50 ohm
- Operating Frequency Band 617 – 698 MHz | 698 – 960 MHz | 1695 – 2700 MHz | 3300 – 3800 MHz | 5150 – 5950 MHz
- Electrical Note Values typical, unless otherwise stated
- Operating Temperature -40 °C to +60 °C (-40 °F to +140 °F)
- Relative Humidity Up to 100%
