Description

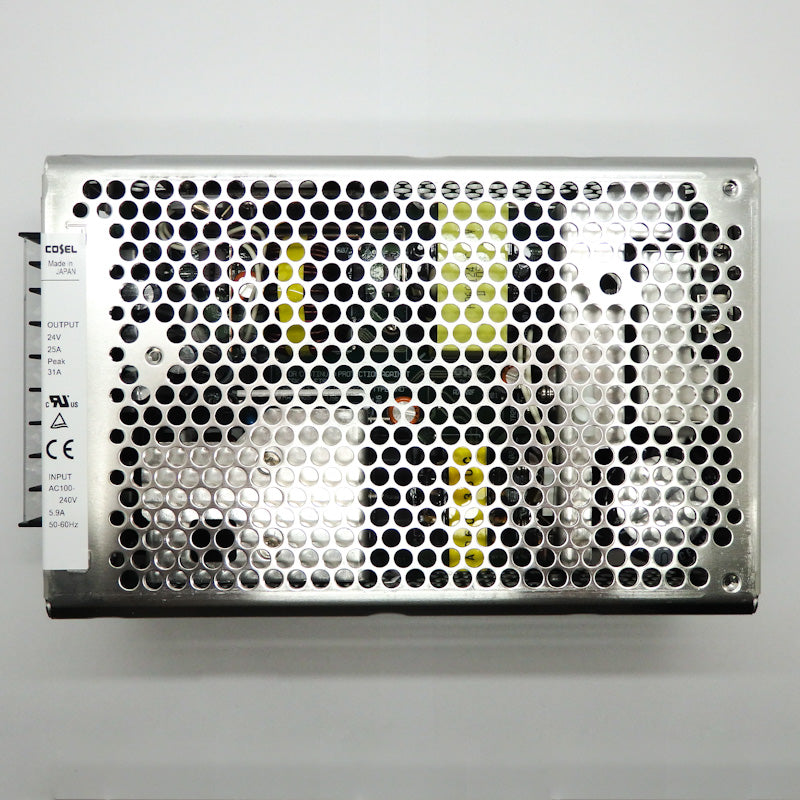

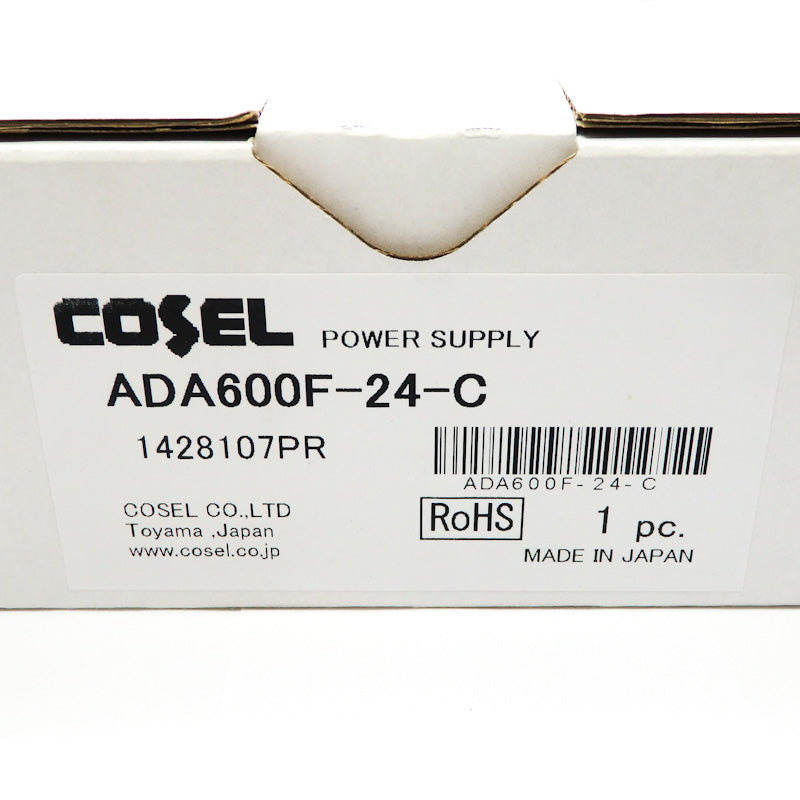

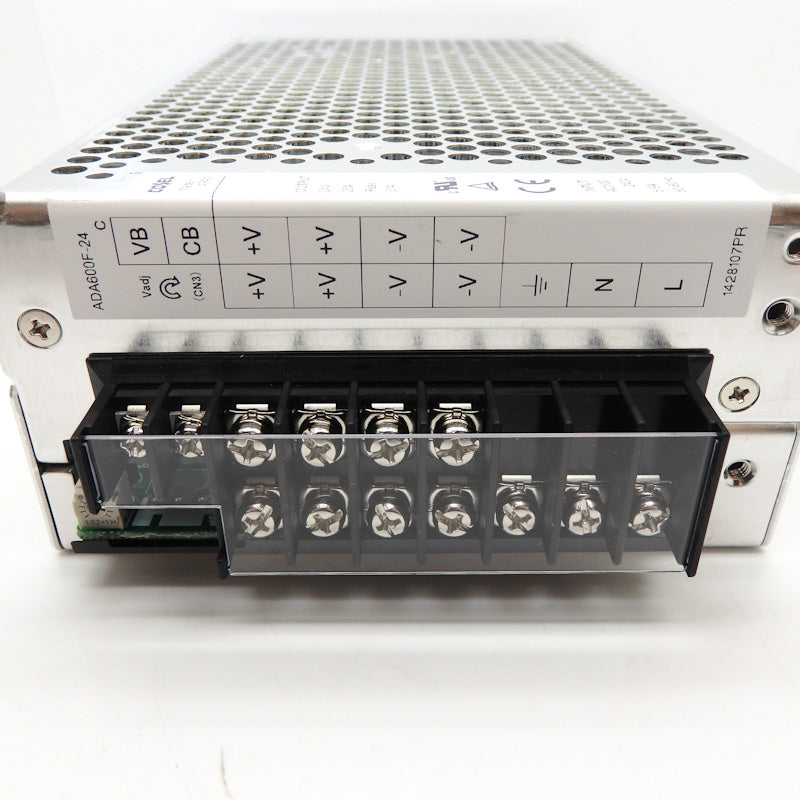

This is a Cosel ADA Series 600W 24VDC 14A Enclosed Type AC/DC Power Supply. Its part number is ADA600F-24-C.
This item comes as pictured and does not include any additional parts or accessories.
Specifications:
- Manufacturer: Cosel
- Part Number: ADA600F-24-C
- Output Voltage-Channel 1: 24 VDC
- Number of Outputs: 1 Output
- Output Power: 600 W
- Input Voltage: 85 VAC to 264 VAC, 120 VDC to 350 VDC
- Output Current-Channel 1: 15 A
- Mounting Style: Chassis
- Length: 7.68 in
- Width: 2.56 in
- Height: 5 in
- Series: ADA
- Cooling Method: Convection, Air-Cooled
- Efficiency: 86 %
- Input Frequency: 50 Hz/60 Hz
- Input Voltage, Max: 264 VAC, 350 VDC
- Input Voltage, Min: 85 VAC, 120 VDC
- Isolation Voltage: 3 kVAC
- Load Regulation: Regulated
- Maximum Operating Temperature: + 71 C
- Mechanical Style: Open / Enclosed Frame
- Minimum Operating Temperature: - 10 C
- Operating Temperature Range: - 10 C to + 71 C
