Description

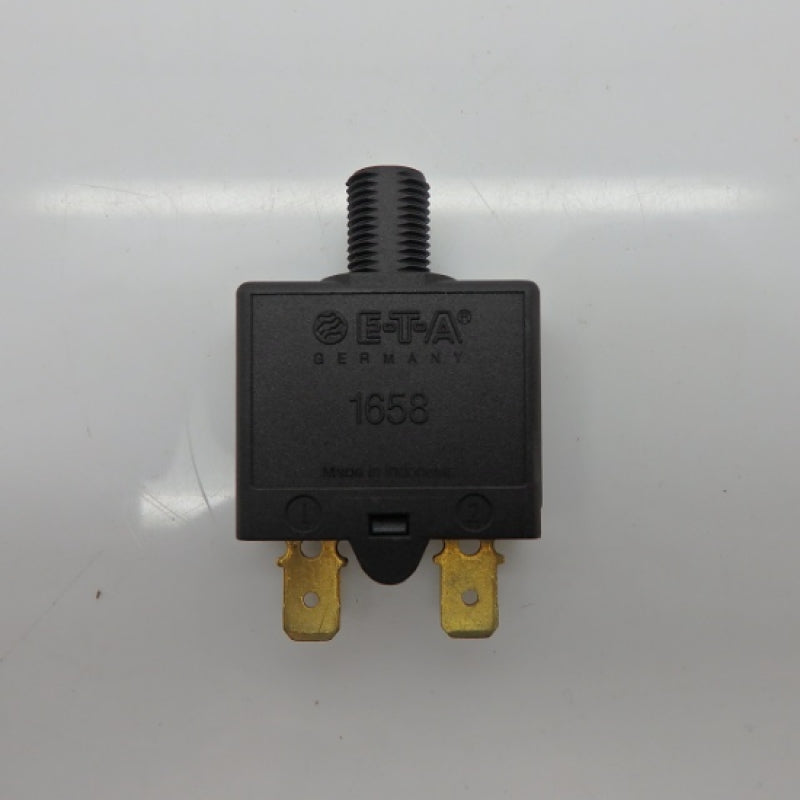

Very cost-effective design meeting international requirements. No exposed metal parts which are, or could become, current-carrying except for terminals. The 1658 is extremely small and lightweight with manual reset functionality and cycling trip free mechanism CSA, VDE and EN 60934 (IEC 60934) approved.
This item comes as pictured and does not include any additional parts or accessories.
Features:
- Cost-Effective Single-Pole Thermal Circuit Breaker
- Snap-In or Threadneck Panel Mounting Available
- Extremely Small and Lightweight

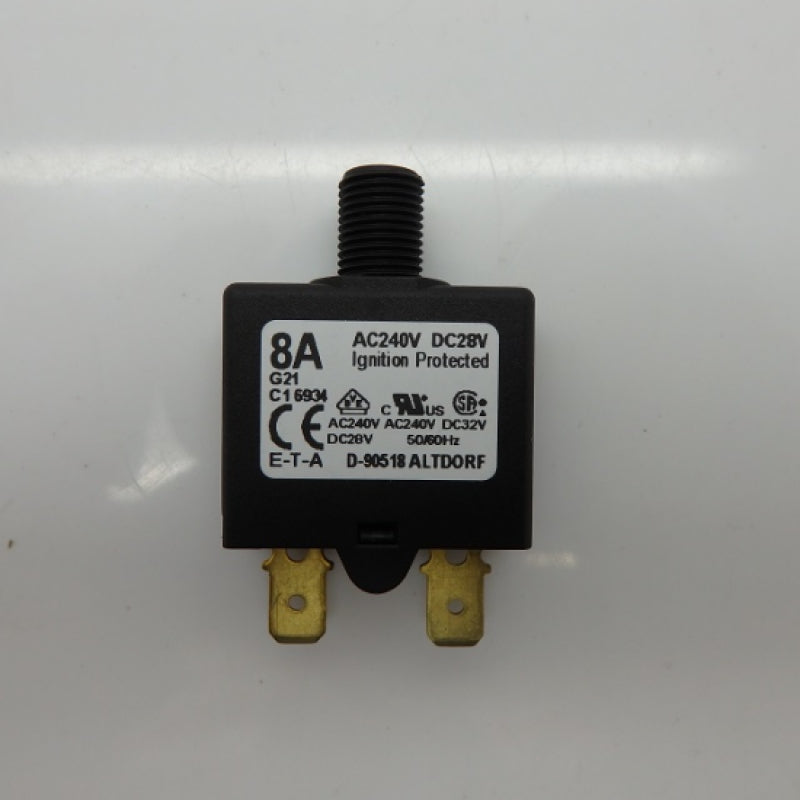

Specifications:
- AC Voltage 240 V
- Actuator Type Push-to-Reset
- Current Rating 8 A
- DC Voltage 28 V
- Mounting Type Chassis Rear Threaded
- Number of Poles 1 Pole
- Overload Thermal
- Series 1658 Series
- Voltage Rating 240 VAC ; 28 VDC
