Description

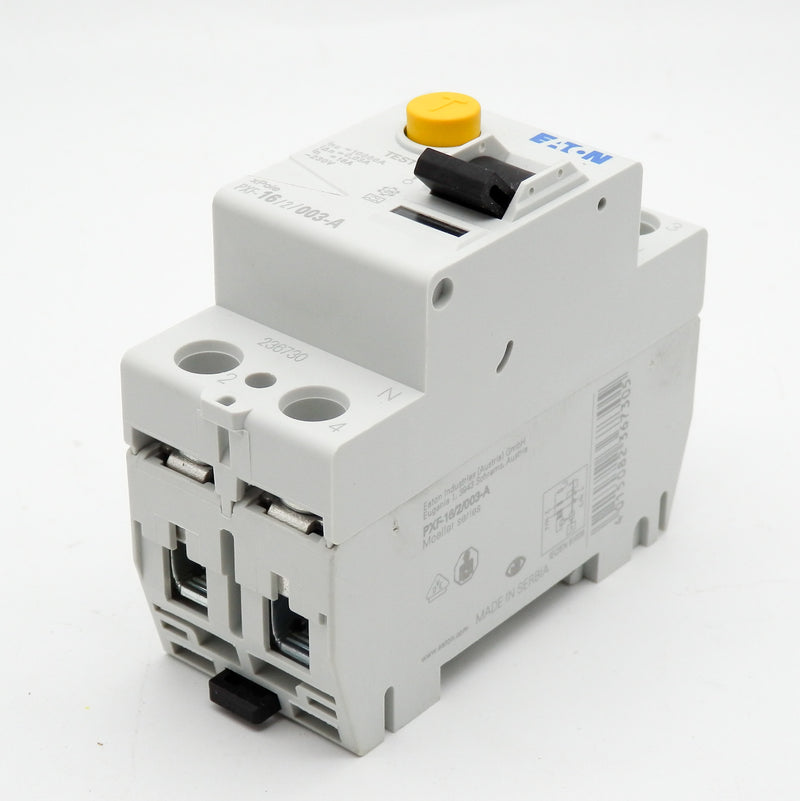

This is a Eaton 236730 PXF-16/2/003-A 230VAC 30mA 16A 1+N Pole Type A Circuit Breaker. Its part number is 236730 PXF-16/2/003-A.
This item comes as pictured and does not include any additional parts or accessories.
Specifications
- Manufacturer: Eaton
- Part Number: 236730 PXF-16/2/003-A
- Circuit Breaker Type: RCCB
- Current Rating: 16A
- Number of Poles: 1+N
- Range: PXF
- Trip Sensitivity: 30mA
- Tripping Characteristics: Type A
- Voltage Rating: 230V ac
- Series: PXF-A
- Rated AC Voltage: 230V
- Mounting Style: DIN Rail Mount
- Overall Length: 80mm
- Overall Depth: 45mm
- Overall Width: 45mm
- Terminal Contact Type: Quick Connect
- Breaking Capacity at Maximum Voltage Rating: 500 A
