Description

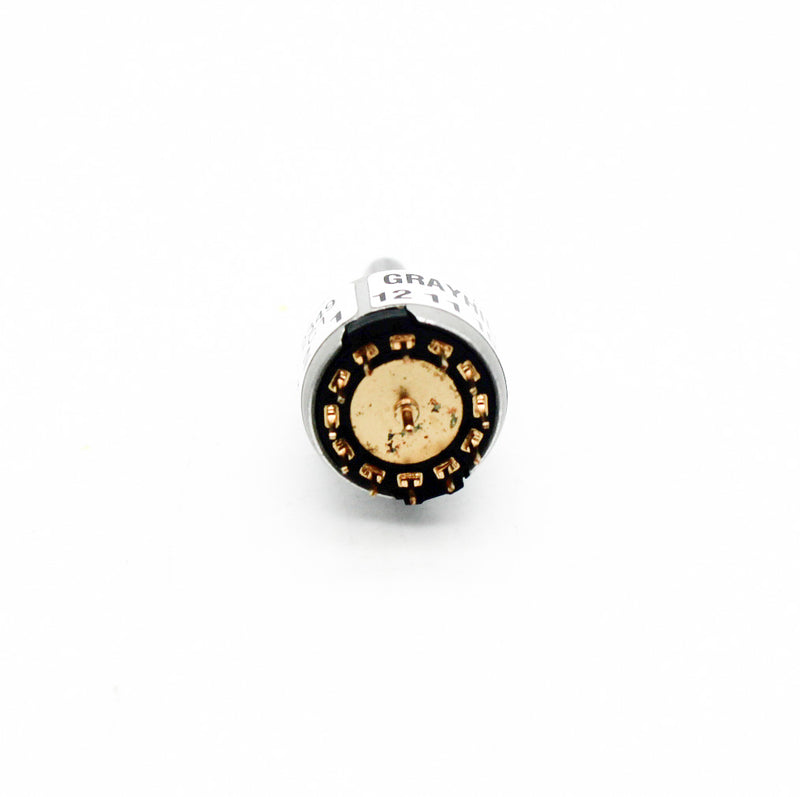

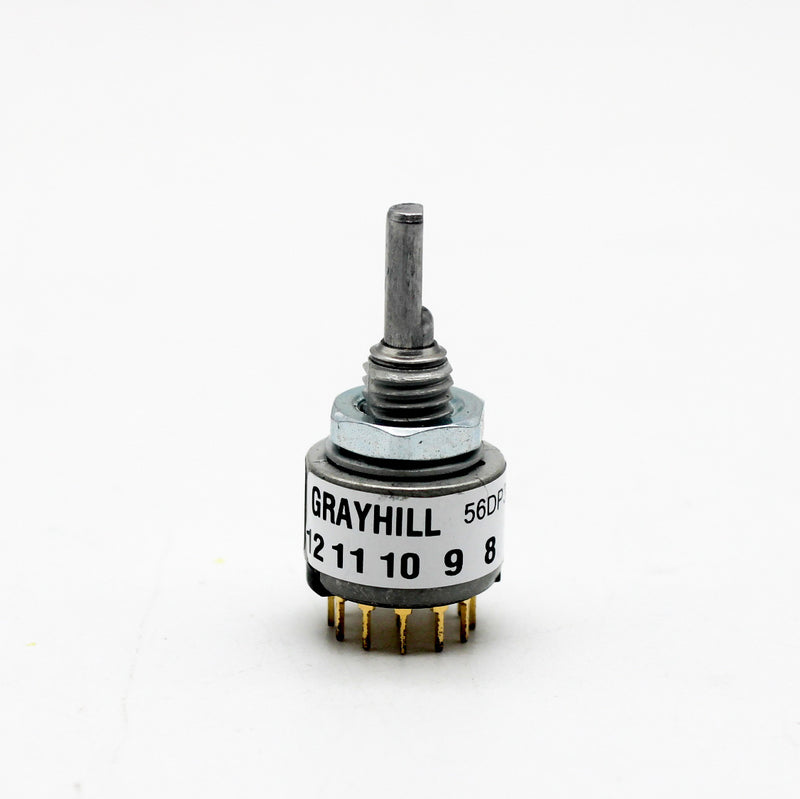

This item is a Grayhill Inc. 56DP30-01-1-AJN SP12T 115VAC 2-12 Position Rotary Switch. Its part number is 56DP30-01-1-AJN.
This item comes as pictured and does not include any additional parts or accessories.
Specifications:
- Manufacturer: Grayhill Inc.
- Part Number: 56DP30-01-1-AJN
- Product: Rotary Switch
- Series: 56
- Number of Positions: 2-12
- Index Stops: Adjustable
- Number of Decks: 1
- Number of Poles per Deck: 1
- Circuit per Deck: SP12T
- Contact Timing: Non-Shorting
- Current Rating: 200mA
- Voltage AC: 115V
- Voltage DC: 30V
- Actuator Type: Flatted
- Actuator Length: 9.53mm
- Angle of Throw: 30 Degrees
- Contact Material: Brass
- Mounting Type: Panel Mount, Through Hole
