Description

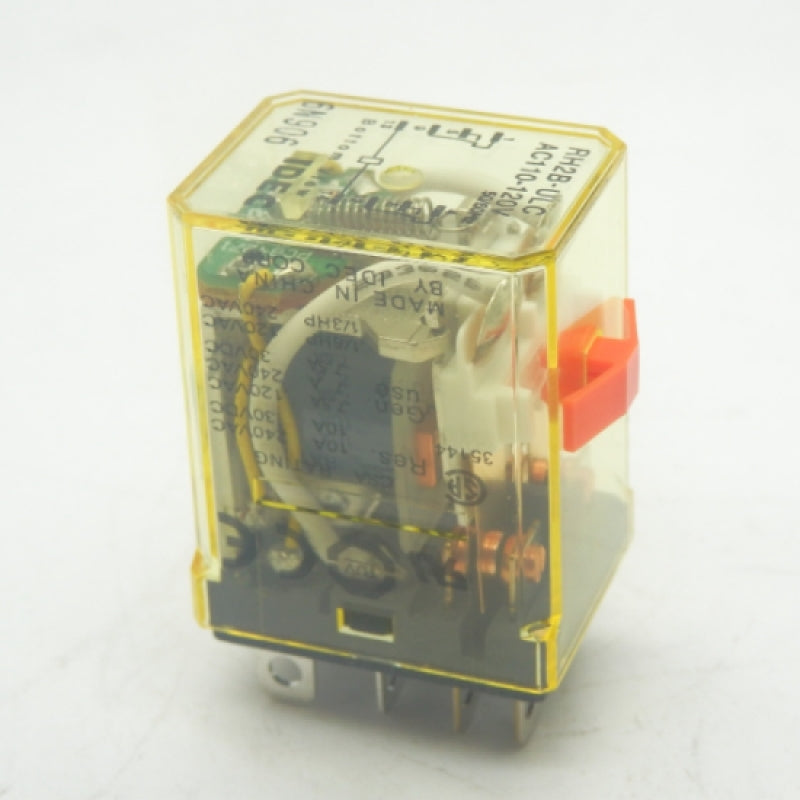

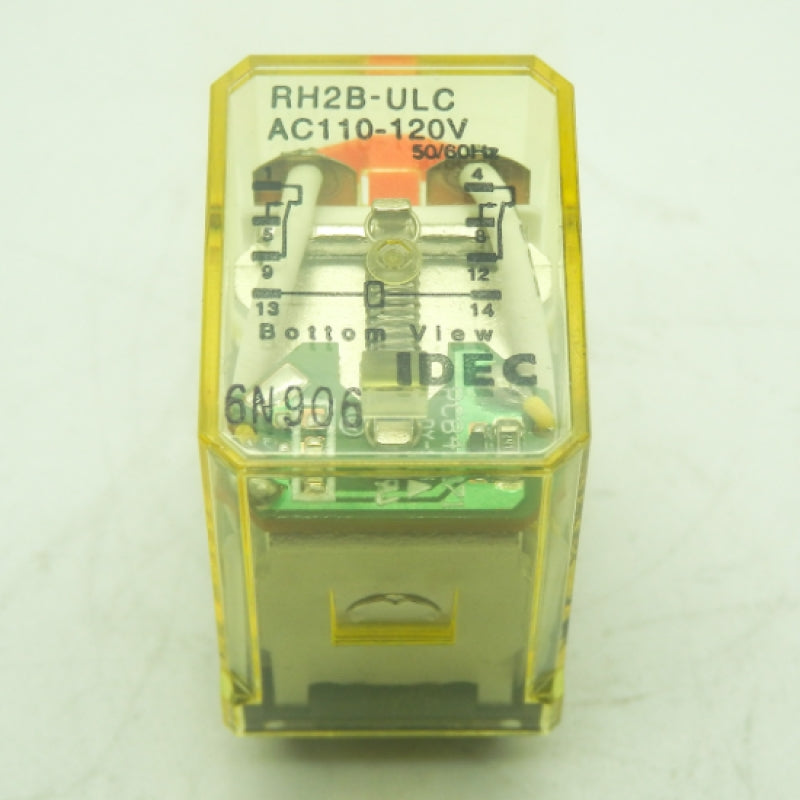

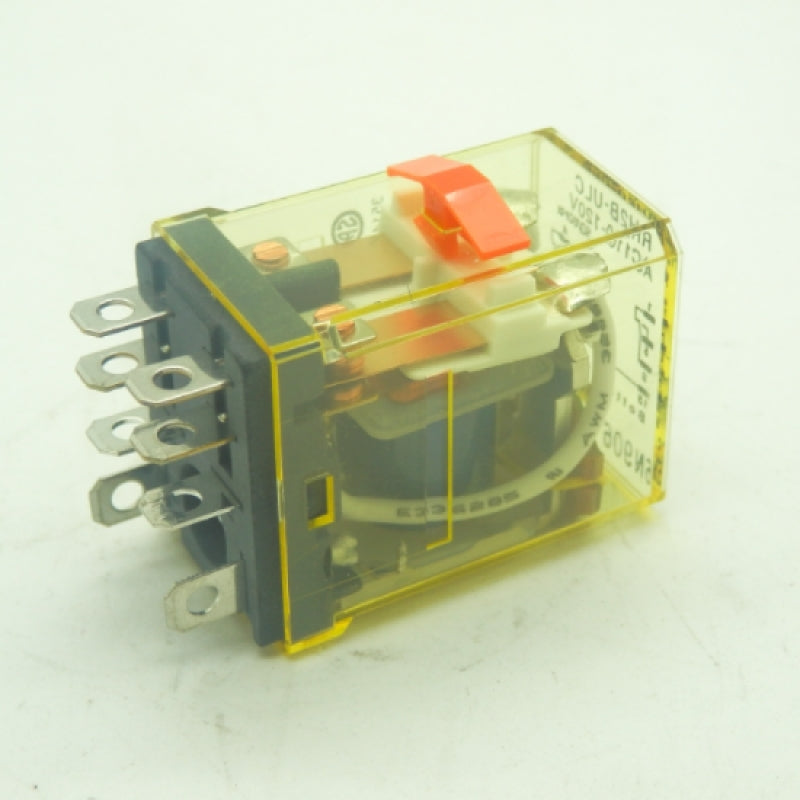

The RH Series are miniature power relays with a large capacity. The RH relays feature 10A contact capacity as large as the RR series and the same size as IDECs miniature relays. The compact size saves space.

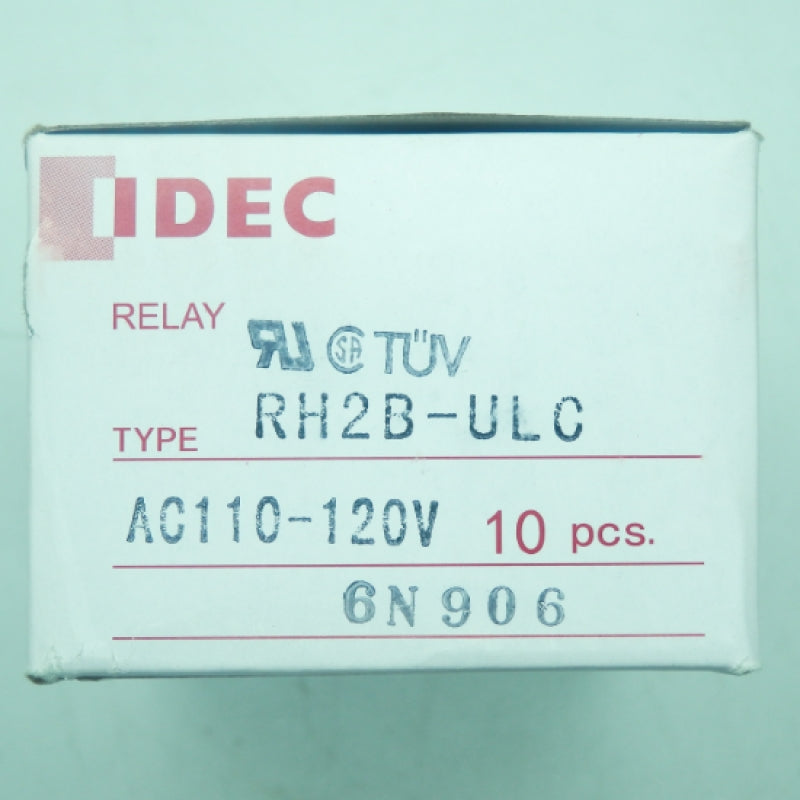

This item comes as pictured and does not include any additional parts or accessories.
Specifications:
- Manufacturer: IDEC Corporation
- Part Number: RH2B-ULCAC110-120V
- Primary Type: Power Relays
- Relay Type: General Purpose
- Series: RH Series
- Contact Current Rating: 10 A
- Contact Form: DPDT
- Contact Voltage Rating: 300 V
- Control Voltage: 120 V
- Mounting Type: Socket Mount
