Description

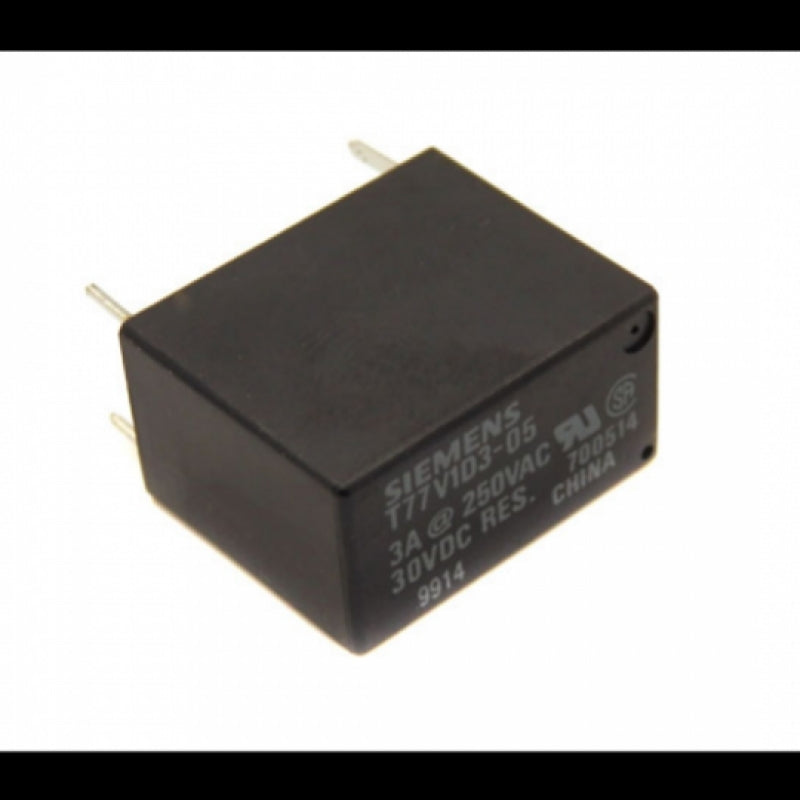

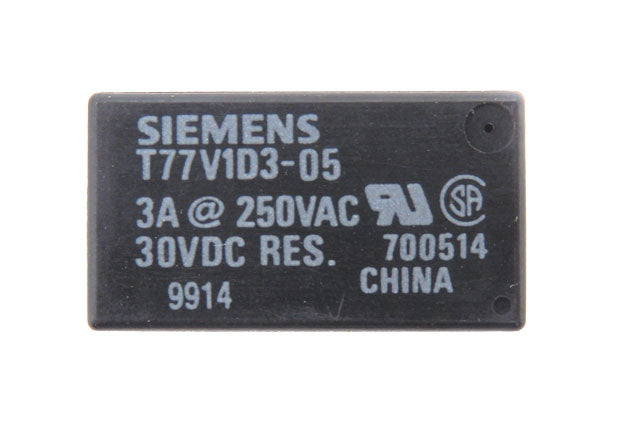

This is a Siemens T77 Series 5VDC 3A 125Ohm PC board relay. Its part number is T77V1D3-05. This item is new and has never been used. It was originally bulk packaged and we have repackaged it for individual sale. It comes as pictured and does not include any additional parts or accessories.
Specifications:
- Manufacturer: Siemens
- Product Category: General Purpose Relays
- RoHS: RoHS Compliant Details
- Mounting Style: Through Hole
- Contact Form: SPST (1 Form A)
- Contact Current Rating: 3 A
- Coil Type: Non-Latching
- Coil Voltage: 5 V
- Coil Resistance: 125 Ohms
- Coil Current: 10 mA
- Contact Material: Silver
- Height: 14.70 mm
- Length: 18.20 mm
- Power Consumption: 200 mW
- Series: T77V
- Width: 10.20 mm
