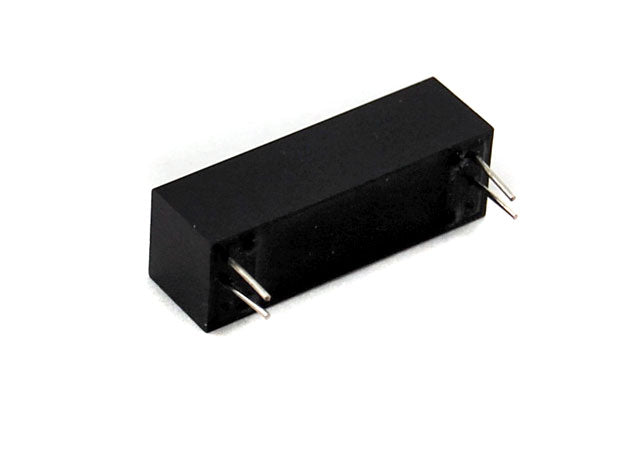

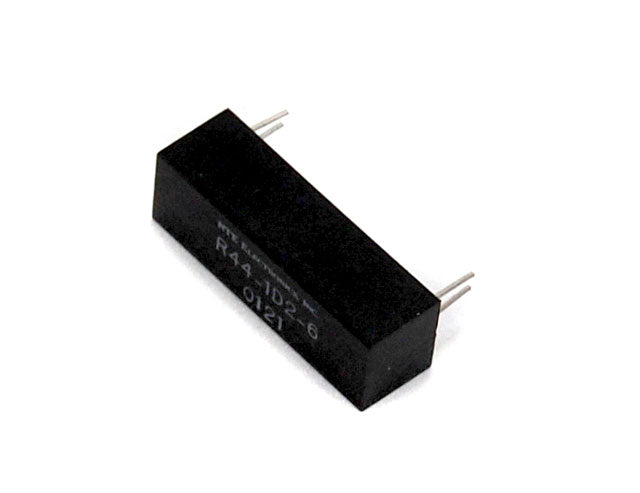

NTE General Purpose SPST DC Reed Relay R44-1D2-6

• Manufacturer: NTE Electronics
• Part Number: R44-1D2-6
• Nom Volt: 5/6VDC
• Contact Arr.: SPST-NO
• Coil Res. Ohms (Type): 100
• Nom. Power: 360mW
• Max. Conact: .5Amp
• Diag No.: D21
• Contact
• Rating: 0.5 Amp switching current max.
• 2.0 Amp carry current max
• 200 VDC switching volts, max.
• Resistance: 200 milliohms max. initial
• Operational Characteristics:
• Timing Values: Operate Time: 500 S typical
• Release Time: 1400 S typical
• Insulation Characteristics
• Dielectric Strength
• Across Open Contacts: 200 VAC min
• Between Mutually Insulated Points: 500 VAC min.
• Environmental Characteristics
• Operating: −45C to +85C
• Storage: −60C to +105C
• Capacitance
• Across Open Contacts: 0.3pf typ
• Open Contacts To Coil: 2.0pf typ
• Life
• Mechanical: 10,000,000 operations at rated load
