Description

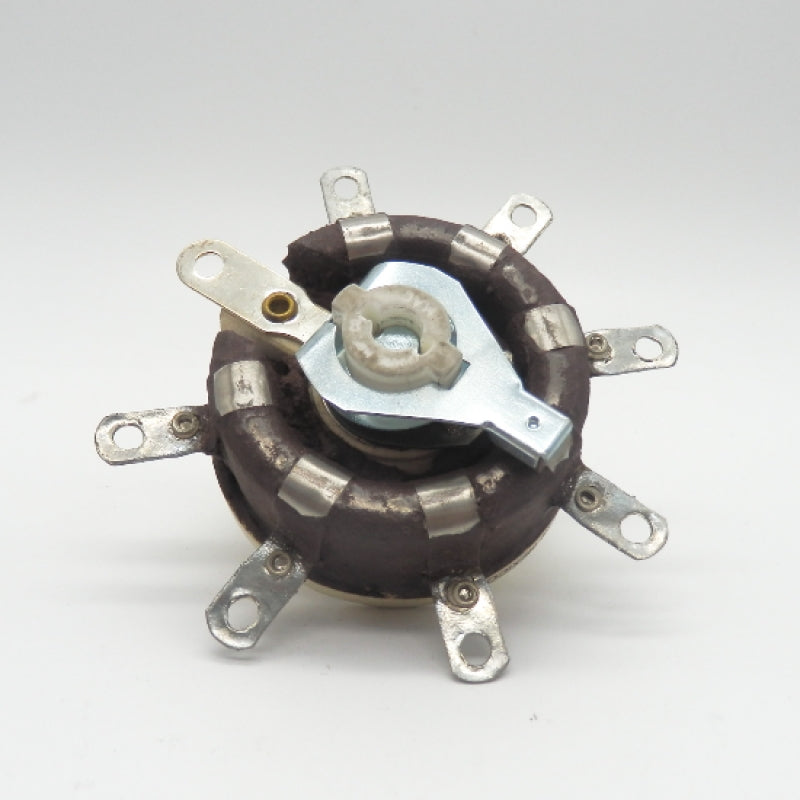

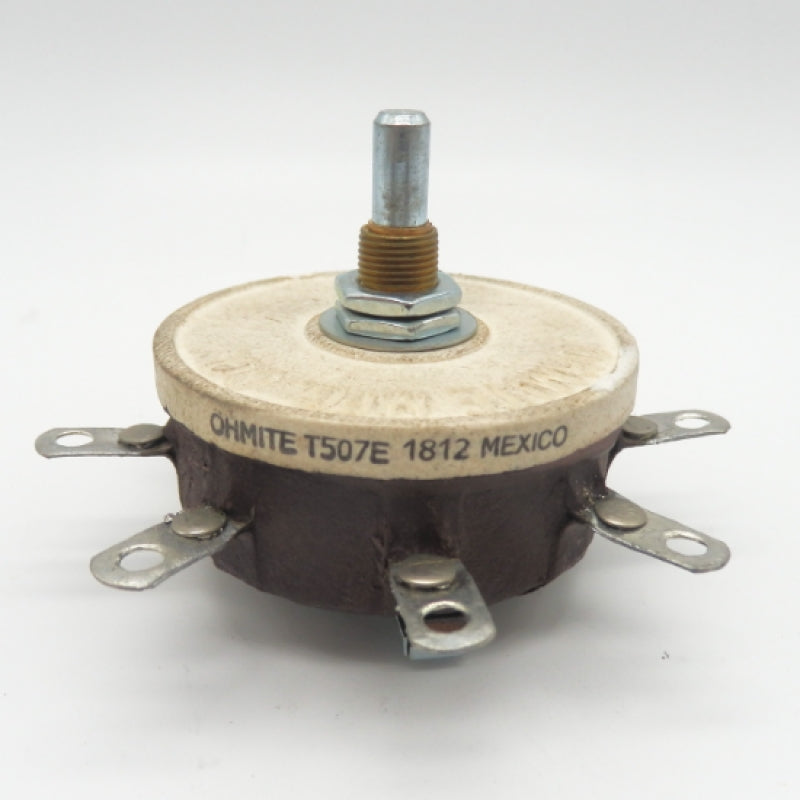

This is a Ohmite Non-Shote Open Type Rotary Tap Switch. Its part number is T507E.

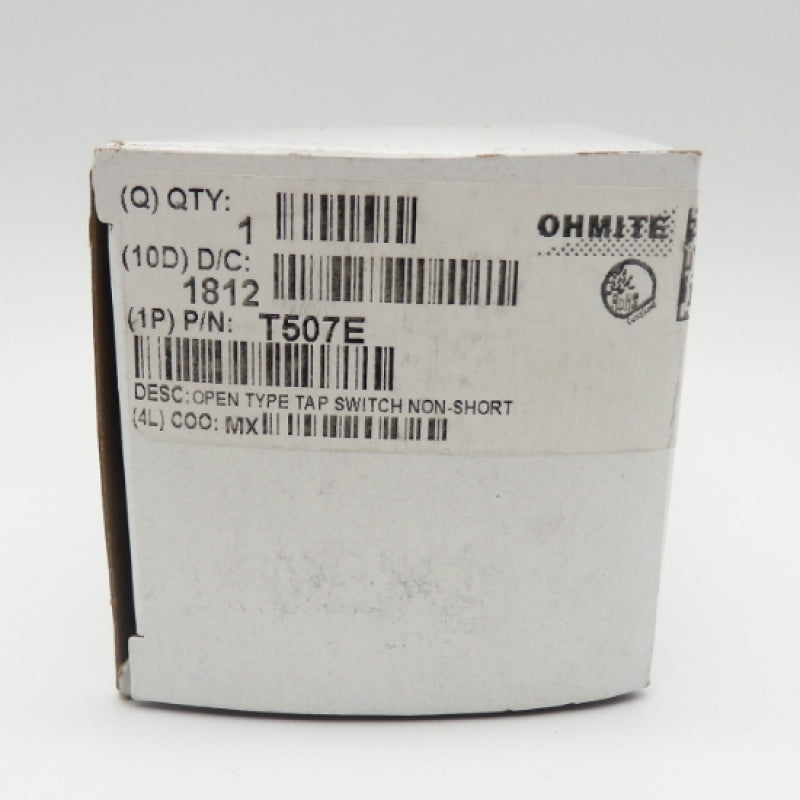

This item comes as pictured and does not include any additional parts or accessories.
Specifications:
- Manufacturer: Ohmite
- Part Number: T507E
- Series: T-50 Series
- AC Voltage: 120VAC
- Actuator Length: 12.7mm
- Actuator Type: Flatted Shaft, 6.35mm Dia
- Contact Form: SP7T
- Contact Material: Silver Alloy
- Current Rating: 3A
- DC Voltage: 20V
- Dimensions: 1.38 in D
- Function: Non-Shorting (BBM)
- Mounting Hole Size: 0.375 in.
- Mounting Type: Panel Mount
- Number of Decks: 1
- Number of Poles: 1
- Number of Positions: 7
- Termination: Solder Lugs
