Description

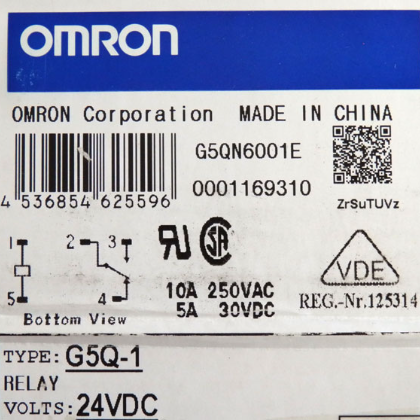

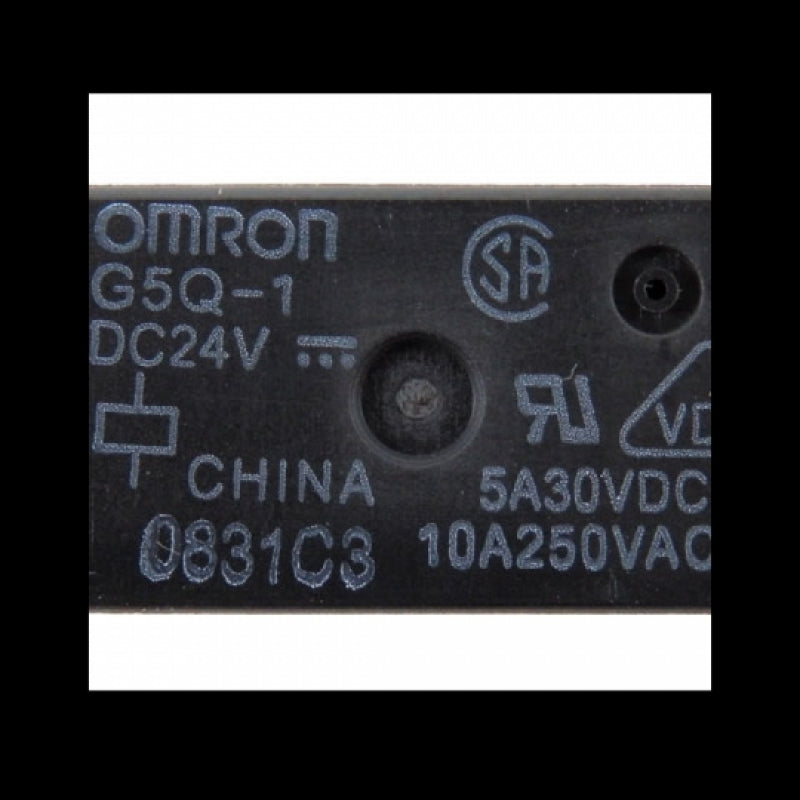

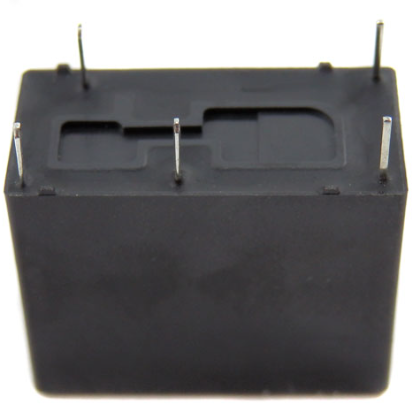

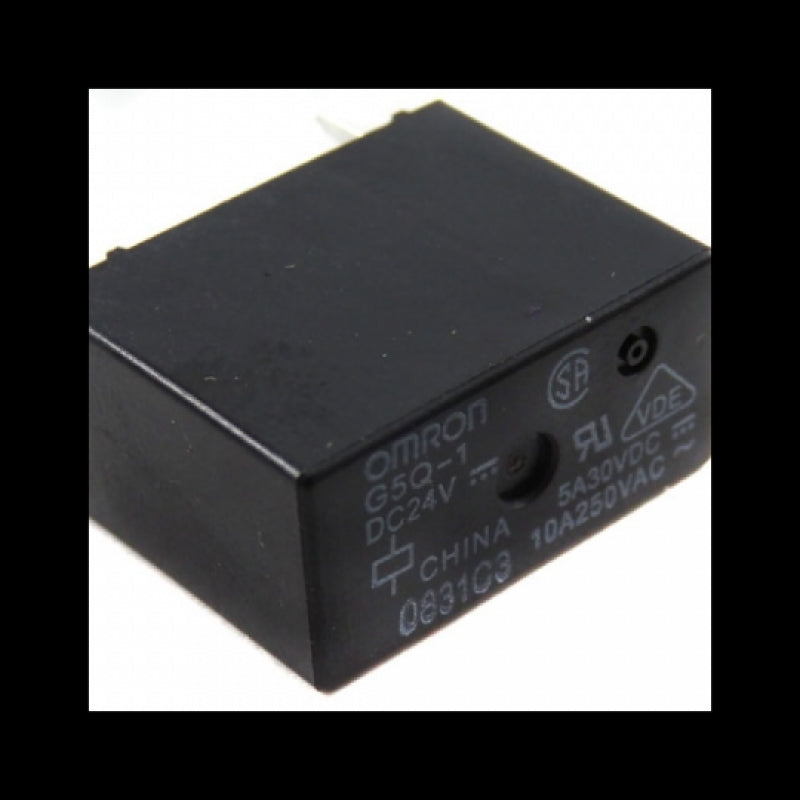

This is an Omron G5Q Series Miniature Power Relay with manufacturer part number G5Q-1-DC24. Compact power PCB relays are ideal for appliance and HVAC controls. They have high coil to contact isolation ensures that it can withstand 8 kV impulse. This relay is new and has never been used. It was originally bulk packaged in tubes of 50 and we have repackaged it for individual sale. It comes as pictured and does not include any additional parts or accessories.
Specifications:
- Brand/Series: G5Q Series
- Contact Form: SPDT
- Current Rating: 3 A
- Current, Rating: 10 A (NO), 3 A (NC)
- Dielectric Rating: 4000 VAC
- Function: General Purpose
- Mounting Type: PCB
- Number of Pins: 5
- Power, Rating: 1250 VA⁄150 W (NO), 375 VA⁄90 W (NC)
- Relay Type: Electro Mechanical
- Resistance, Coil: 1440 Ohms
- Standards: UL, CSA, RoHS, VDE
- Temperature, Operating: -40 to +105 °C
- Termination: Through Hole
- Voltage, Control: 24 VDC
- Voltage, Rating: 125 VAC
