Description

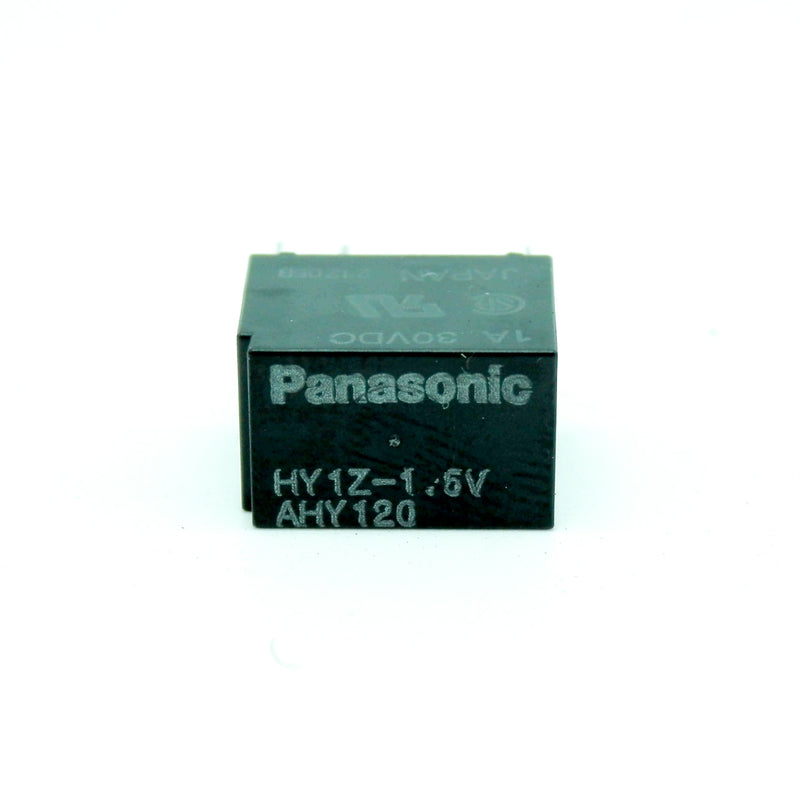

This is a Panasonic SPDT 1A 1.5V Low Signal Relay. Its part number is HY1Z-1.5V.
This item comes as pictured and does not include any additional parts or accessories.
Specifications:
- Manufacturer: Panasonic
- Part Number: HY1Z-1.5V
- Product: Communications Relays
- Type: Miniature
- Coil Voltage: 1.5 VDC
- Relay Contact Form: 1 Form C (SPDT-NO, NC)
- Contact Rating: 1 A
- Contact Current Rating: 2 A
- Maximum Switching Current: 1 A
- Coil Current: 133.3 mA
- Coil Type: Non-Latching
- Power Consumption: 200 mW
- Contact Termination: Solder Pin
- Coil Resistance: 11.25 Ohms
- Contact Form: SPDT (1 Form C)
- Contact Material: Silver (Ag) with Gold Plating
- Mounting Style: Through Hole
