Description

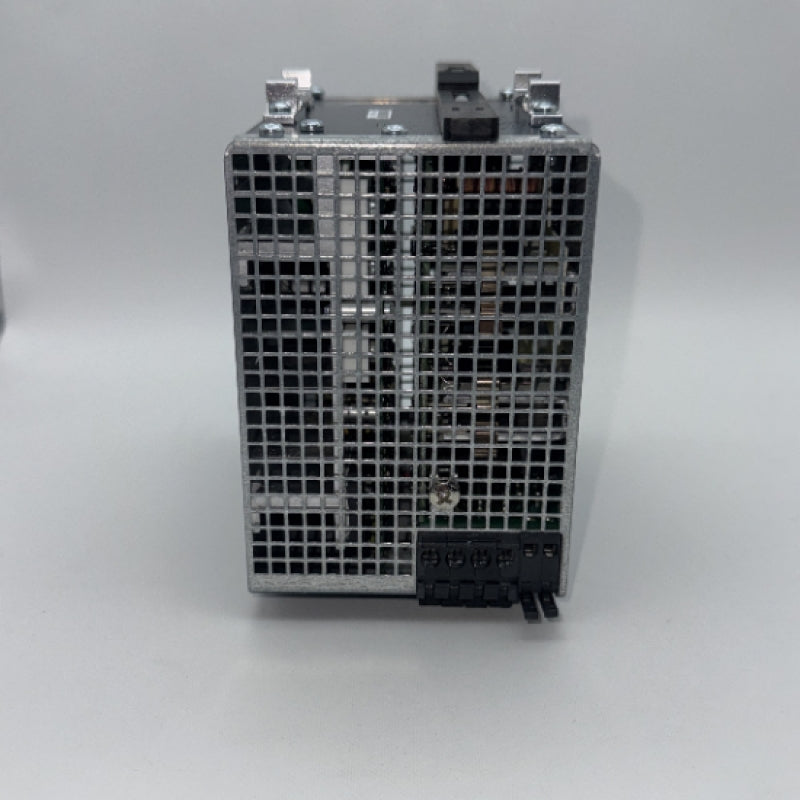

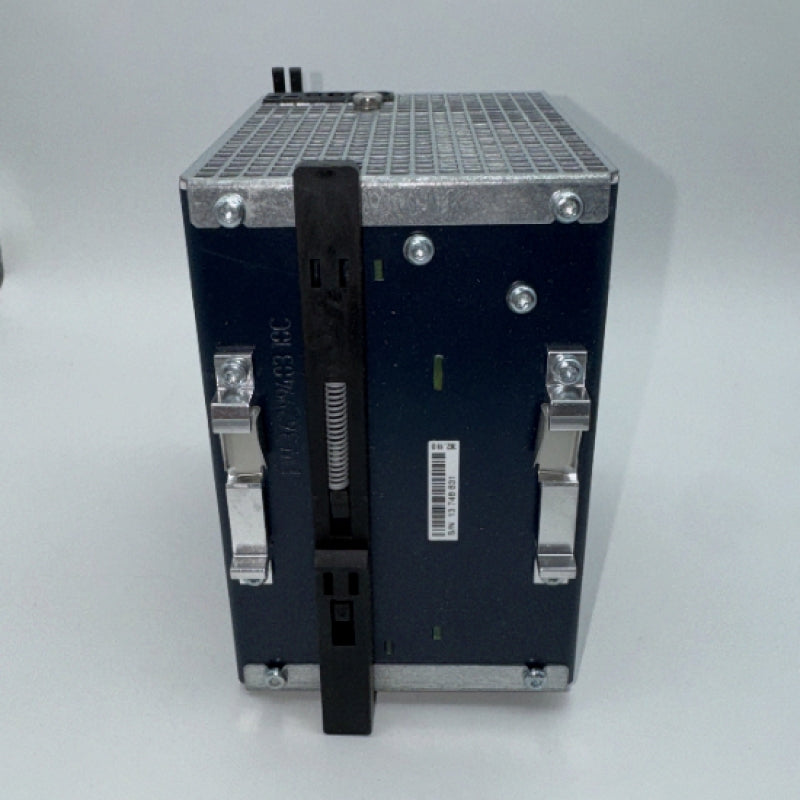

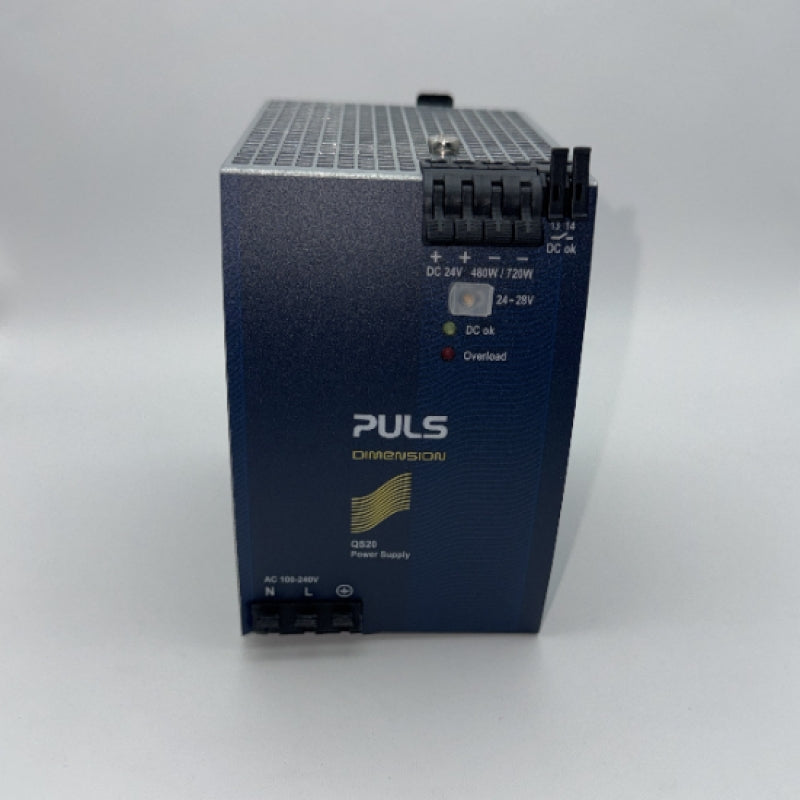

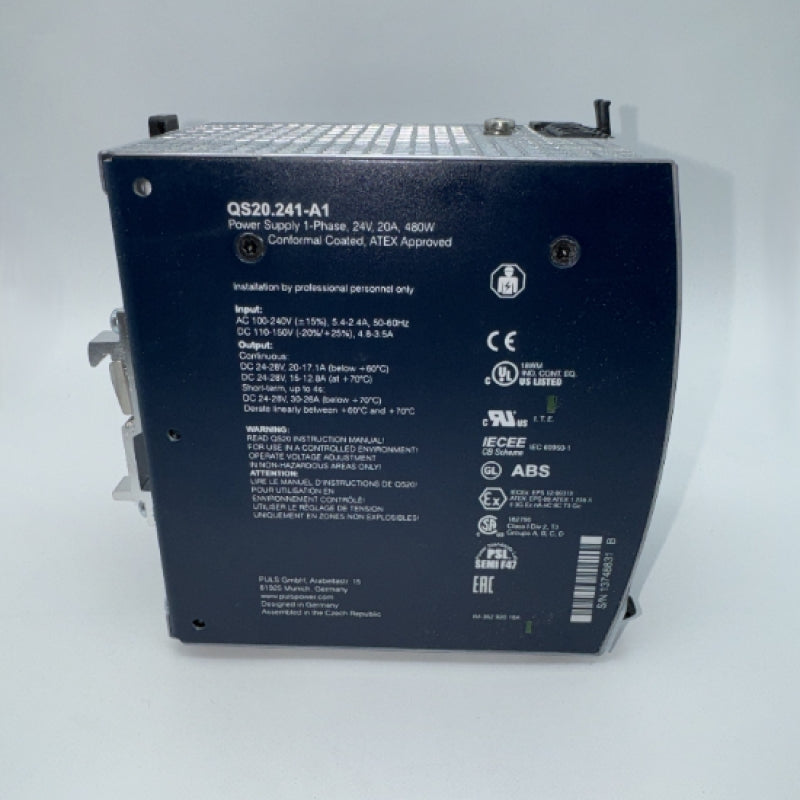

This is a PULS 1-Phase 24V 20A DIN-Rail Power Supply. Its part number is QS20.241-A1.
Features:
- AC 100-240V wide-range input
- Width only 82mm
- Efficiency up to 93.9%
- 150% (720W) peak load capability
- Safe Hiccup PLUS overload mode
- Easy fuse tripping due to high overload current
- Active power factor correction (PFC)
- Negligible low inrush current surge
- Short-term operation down to 60Vac and up to 300Vac
- Full power between -25°C and +60°C
- DC-OK relay contact
- Quick-connect spring-clamp terminals
Specifications:
- DC Output:
- 24-28Vdc
- 20-17A
- 480W
- Input:
- AC 100-240V (± 15%)
- DC 110V-150V (-20%/+25%)
- Size (WxHxD): 82 x 124 x 127mm
