Description

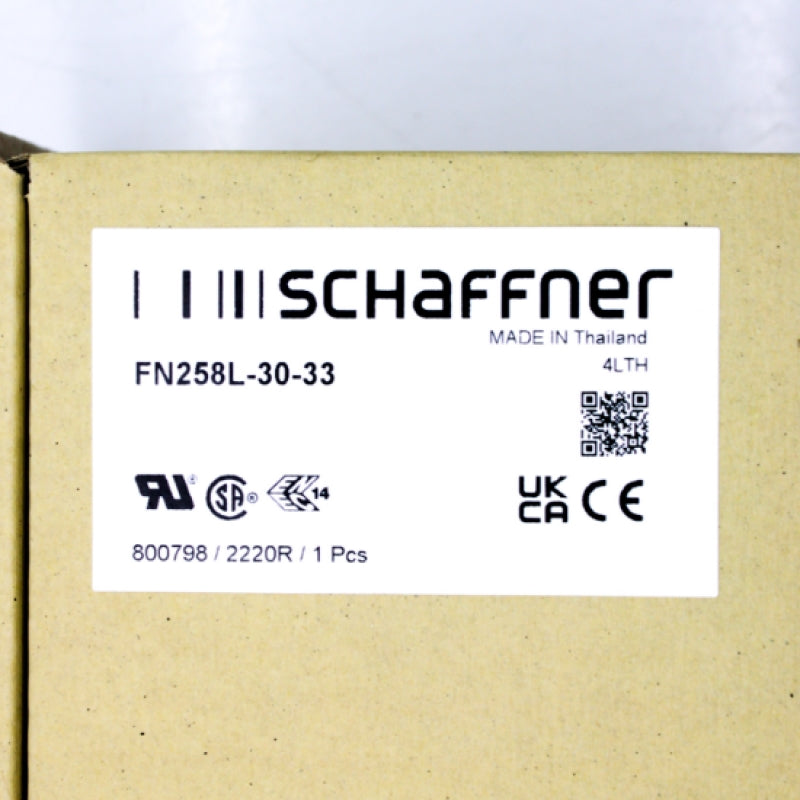

This is a Schaffner 3-Phase 30A Book Style EMC-RFI Filter For Inverters and Power Drive Systems. Its part number is FN258L-30-33.
This item comes as pictured and does not include any additional parts or accessories.
Specifications:
- Manufacturer: Schaffner
- Part Number: FN258L-30-33
- Filter Type: 3-Phase EMC/RFI Filter
- Voltage Rating: 480 VAC
- Current Rating: 30 A
- Mounting Style: Chassis Mount
- Termination Style: Terminal Block
- Leakage Current: 100 uA
- Approvals: UL, CSA, IEC/EN
- Series: FN258
- Operating Frequency: 0 Hz to 60 Hz
- Compliance: CE, UL/CSA
- Height: 150 mm
- Length: 305 mm
- Width: 60 mm
- Maximum Operating Temperature: + 100 C
- Minimum Operating Temperature: - 25 C
