Description

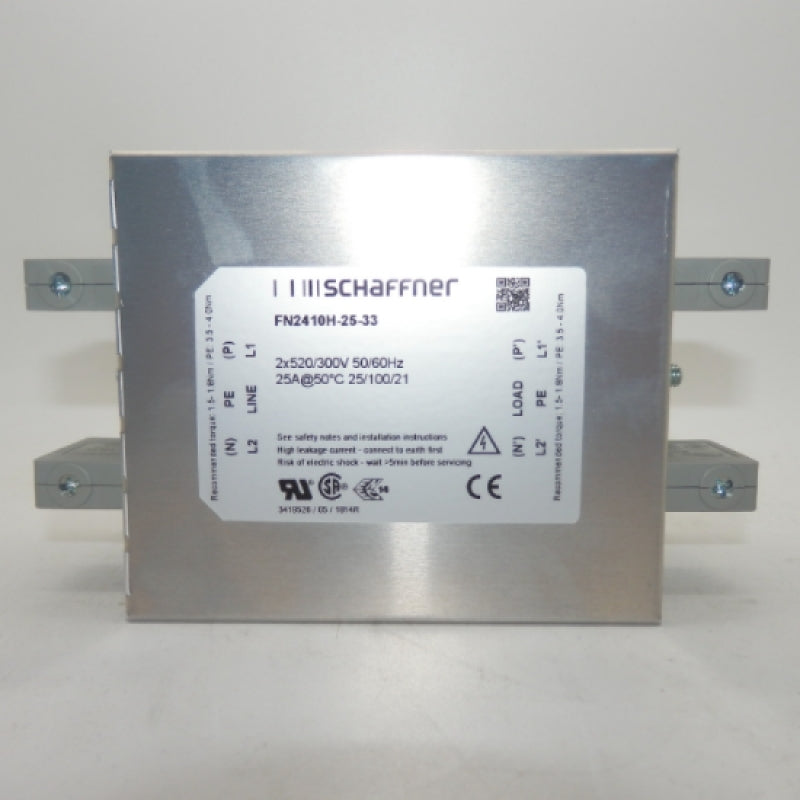

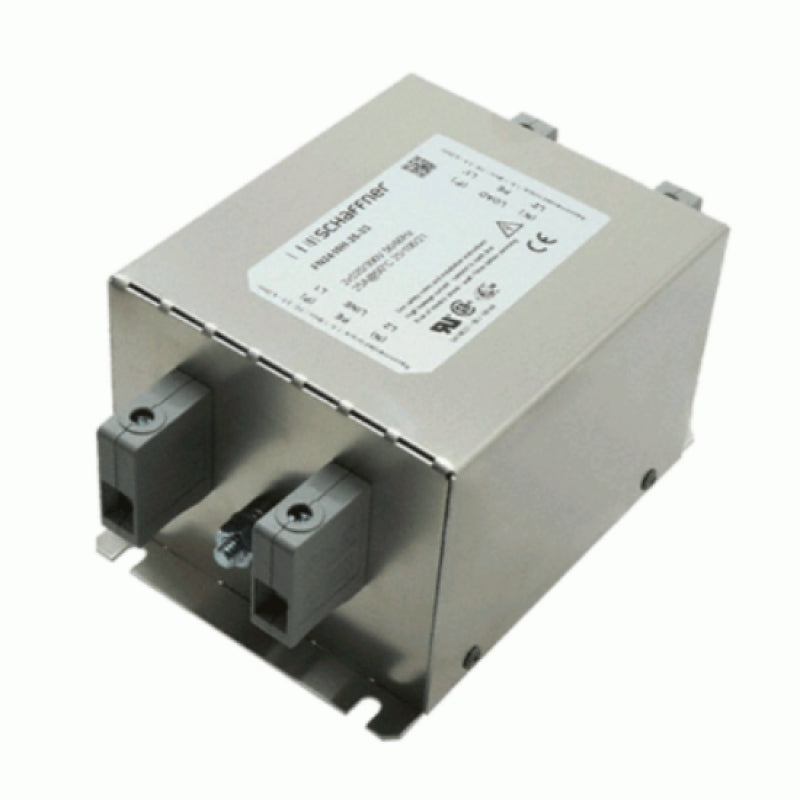

FN2410 and FN2412 filters provide exceptional conducted attenuation performance. Using chokes with high saturation resistance and excellent thermal behavior allows filters to retain their performance even in very noisy applications and under full load conditions. FN2410 filters are designed for traditional chassis-mounting, FN2412 filters snap-in mount quickly and easily on TS 35 DIN rails, common in most electrical cabinets.

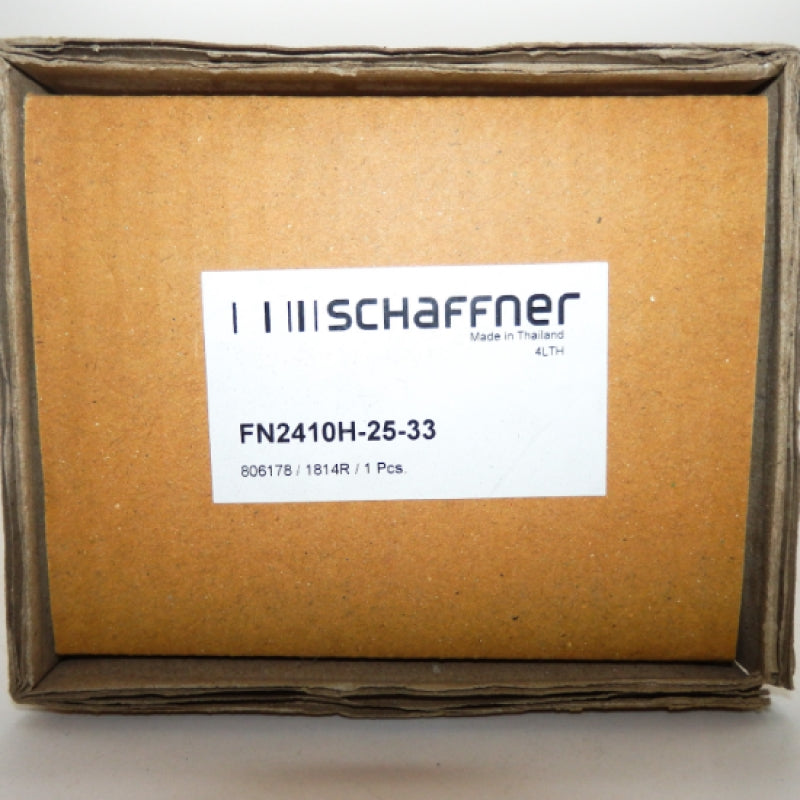

It comes as pictured and does not include any additional parts or accessories.
Specifications:
- Current Rating: 25 A
- Filter Type: EMI ; EMC
- Line to Line Hipot Rating: 2250 VDC VAC
- Mounting Type: Panel Mount
- Phase: 1 Phase
- Series: FN 2410 Series
- Termination: Terminal Block
- Type: EMI
- Version: Standard
- Voltage Rating: 520 V
