Description
SKF 1213 EKTN9/C3 Self Aligning Ball Bearing With Tapered Bore. Its part number is 1213 EKTN9/C3.
Self-aligning ball bearings, with a tapered bore, have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.

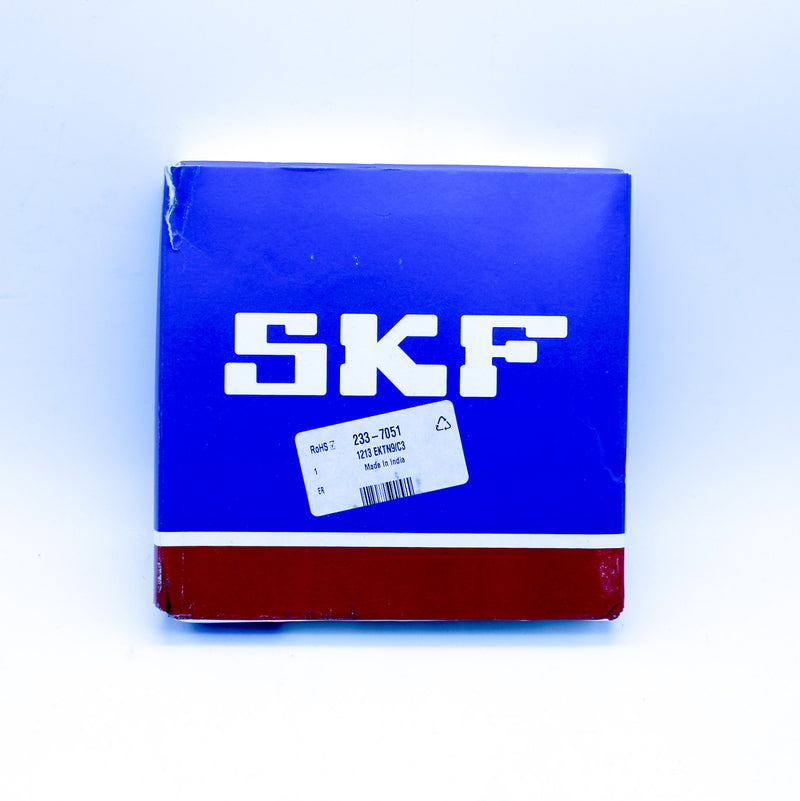

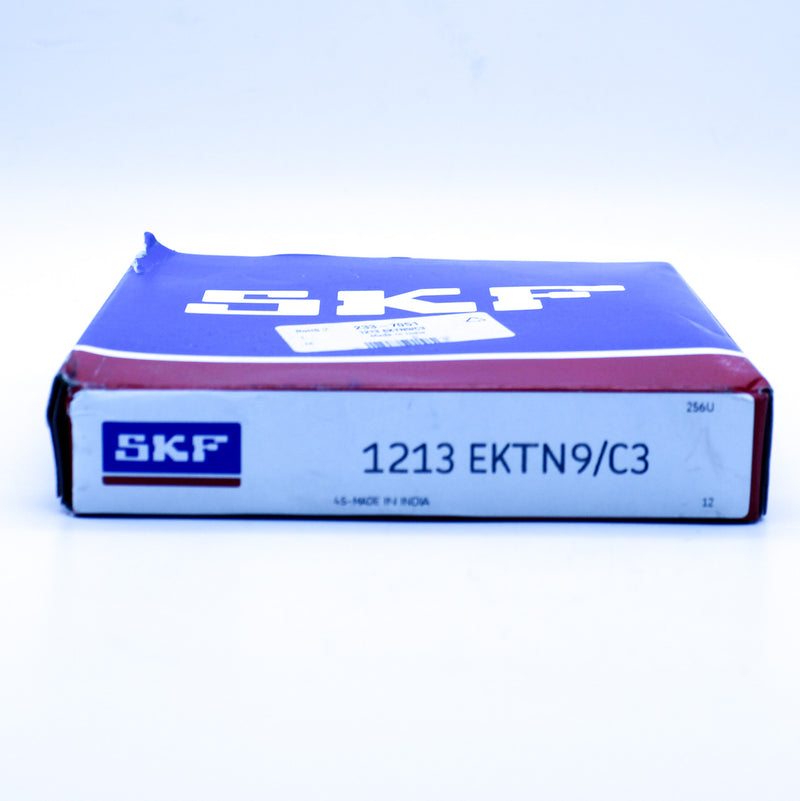

This item comes as pictured and does not include any additional parts or accessories.
Specifications:
- Manufacturer: SKF
- Part Number: 1213 EKTN9/C3
- Product: Self Aligning Ball Bearing
- Bore Diameter: 2.559"
- Outside Diameter: 4.724"
- Width: 0.906"
- Number of Rows: 2
- Bore Type: Tapered 1:12
