Description
The SimpleLink CC2650DK development kit provides a complete hardware performance test platform and generic software development environment for the ARM Cortex M3-based, Bluetooth 4.1/IEEE 802.15.4 compliant CC2650 system-on-chip. The CC2650EM evaluation modules can be used as reference modules for prototyping and for verifying the performance of the CC2650 device. Also suitable for both ZigBee and 6LoWPAN applications.

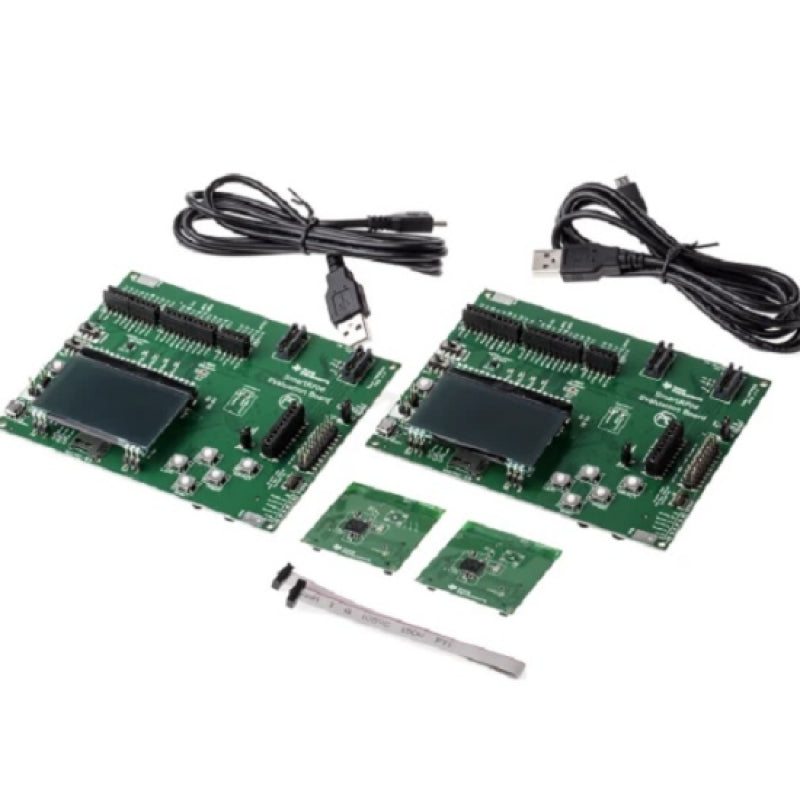

Supplied with: 2 x SmartRF06EB Evaluation Boards, 2 x CC2650EM Evaluation Modules, cables
SmartRF06EB Evaluation Board
- On-board XDS100v3 emulator hardware
- 128 x 64 pixel graphic LCD panel
- High-Speed USB 2.0 interface and connector
- UART Back-Channel breakout
- SFH5711 ambient light sensor
- BMA250 3-axis accelerometer
- 4 x user LEDs
- 2 x XDS100v3 emulator status LEDs
- High-side current sensing unit
- Reset pushbutton
- 5 x user pushbuttons
- MicroSD card slot
- Headers for CC2650EM Evaluation Module
- I/O breakout headers
- 20-pin ARM JTAG header
- 10-pin ARM Cortex debug header
- 2 x AA battery holders
- CR2032 coin-cell holder
- Powered from USB, external connector or batteries
CC2650EM Evaluation Module
- CC2650 device
- Micro USB connector
- PCB antenna
- Footprint for SMA antenna connector
- Powered from USB or SmartRF06EB
