Description

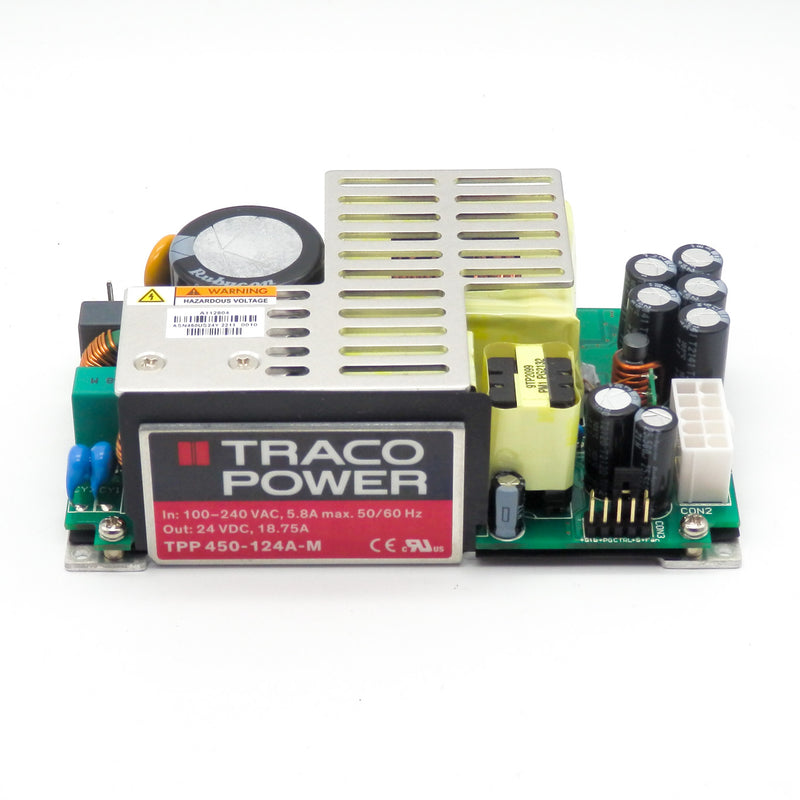

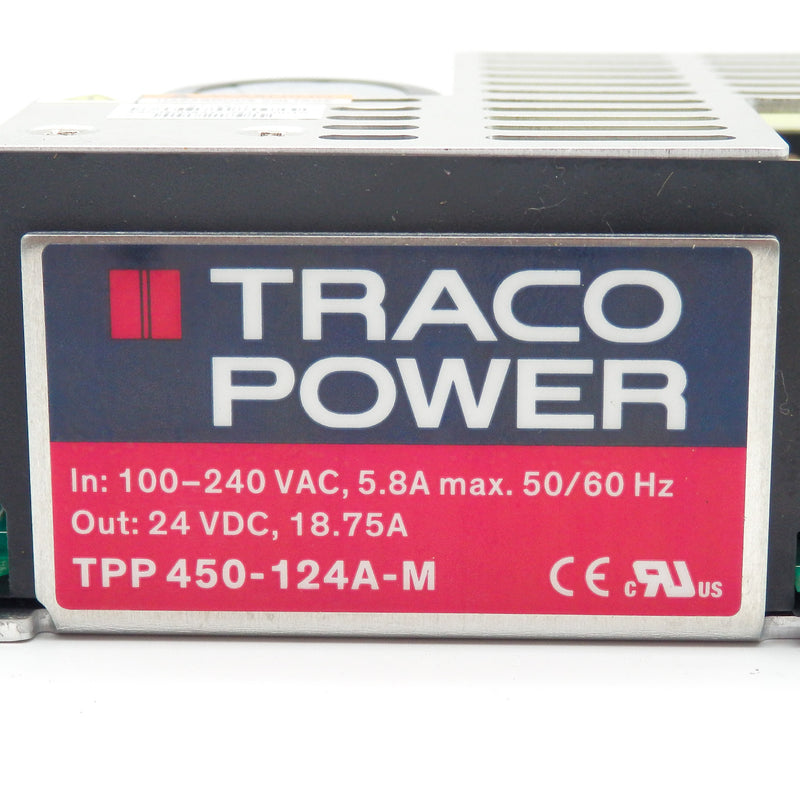

This is a Traco Power 450W 24V Medical AC-DC Power Supply. Its part number is TPP 450-124A-M.
This item comes as pictured and does not include any additional parts or accessories.
Specifications:
- Manufacturer: Traco Power
- Part Number: TPP 450-124A-M
- Output Voltage: 24 VDC
- Number of Outputs: 1 Output
- Output Power: 450 W
- Open Frame/Enclosed: Open Frame
- Input Voltage: 85 VAC to 264 VAC, 120 VDC to 370 VDC
- Output Current: 18.75 A
- Industry: Medical
- Mounting Style: Chassis
- Length: 127 mm (5 in)
- Width: 76.2 mm (3 in)
- Height: 40.1 mm (1.579 in)
- Series: TPP 450A
- Efficiency: 93 %
- Input Frequency: 47 Hz to 440 Hz
- Isolation Voltage: 4 kVAC
- Load Regulation: Regulated
- Maximum Operating Temperature: + 85 C
- Minimum Operating Temperature: - 40 C
